Three Chuck Tube Fiber Laser Cutting machine
Fast speed,high precision, high cost performance
Tube Laser Cutter Product
Features: Improve material utilization: The three-chuck
clamping workpiece reduces the generation of waste and has a high material utilization rate.
High cutting accuracy: Independent follow-up support can stably clamp slender pipes to ensure
cutting accuracy.
- Cutting-Edge Technology
- One-Stop Laser Solutions
- Tailored to Your Needs

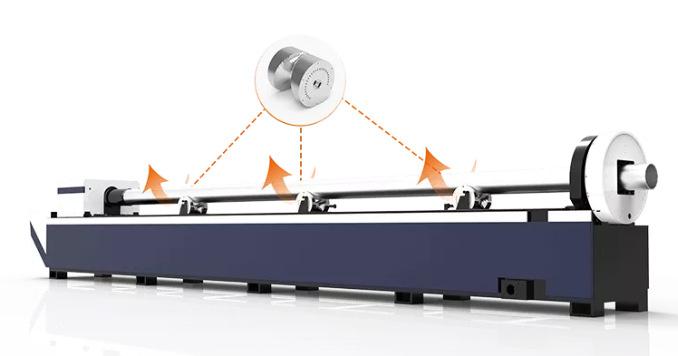

Efficient Cutting, No Deformation
The unique structural design adopts segmented automatic support device to solve the deformation problem caused by long pipe cutting. It is stable and vibration-resistant. It improves working accuracy and prolongs the service life of the chuck and transmission structure.

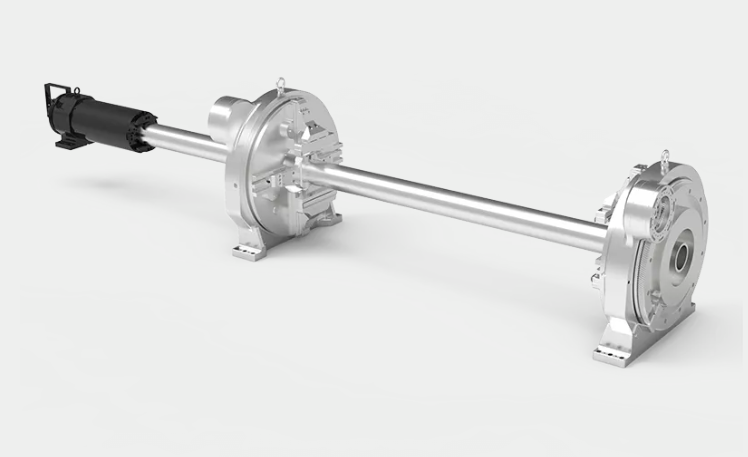

Three-Chuck Clamping, Stable Cutting
One-button clamping, automatic centering, high degree of automation. Three times faster than electric chuck, saving waiting time. Equipped with clamping claws, saving materials. The clamping strength can be adjusted conveniently and quickly according to the thickness of the pipe wall.
Intelligent Contour Recognition
With contour recognition system, it can automatically identify standard round, oval, square and
other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of
the whole meter section’s cutting accuracy within 0.15mm.

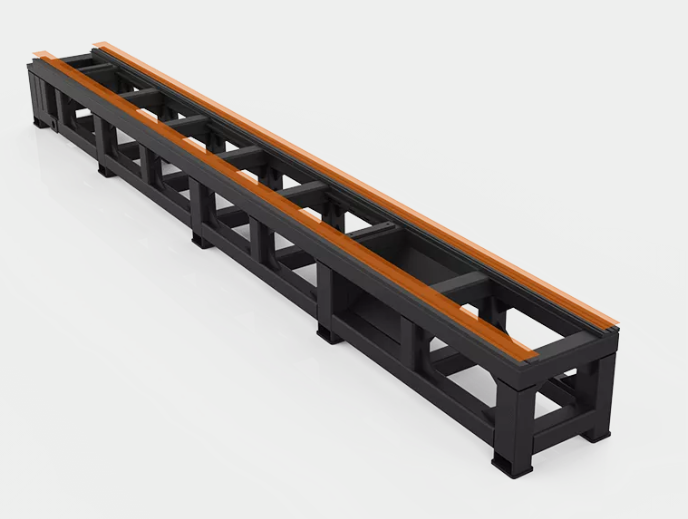

Tube Welding Bed
Square tube welding bed. The internal structure adopts aircraft metal honeycomb structure. The bed has high strength and tensile resistance, and the guide surface is more stable. High temperature annealing treatment eliminates the stress generated by welding machine processing. Reduce the loss of laser cutting machine during use, and it will not deform after 30 years of use.
Tube Laser Machine Technical Parameters
| Mode | T-6023H3 | |||
|---|---|---|---|---|
| Min Diameter | Φ15mm □15mm | |||
| Max Diameter | Φ230mm □160mm | |||
| Laser Power Supply | 1500w, 2000w, 3000w, Higher Power | |||
| Maximum Acceleration | 1G | |||
| Positioning Accuracy | ±0.03mm | |||
| Voltage | 380V 3PH50/60HZ | |||
| Chuck Speed | 60r/min | |||
| Upgrade | Alr Conditioner,Smoke Puriher,Air Compressor,Voltage Reglator,Satety Lignt Curtain | |||
Tube Laser Cutting Machine Key Features
High-Precision 3D Laser Cutting Head
Advanced Pneumatic Chuck
Rack and Pinion Drive
High-Efficiency Fiber Laser Source
User-Friendly Control Panel
Eco-Friendly and Energy-Efficient
Laser Cutting Machine Tube Showcase
Stainless Steel Tube
Carbon Steel Pipe
Aluminum Tube
Carbon Steel Pipe
Carbon Steel Square Tube
