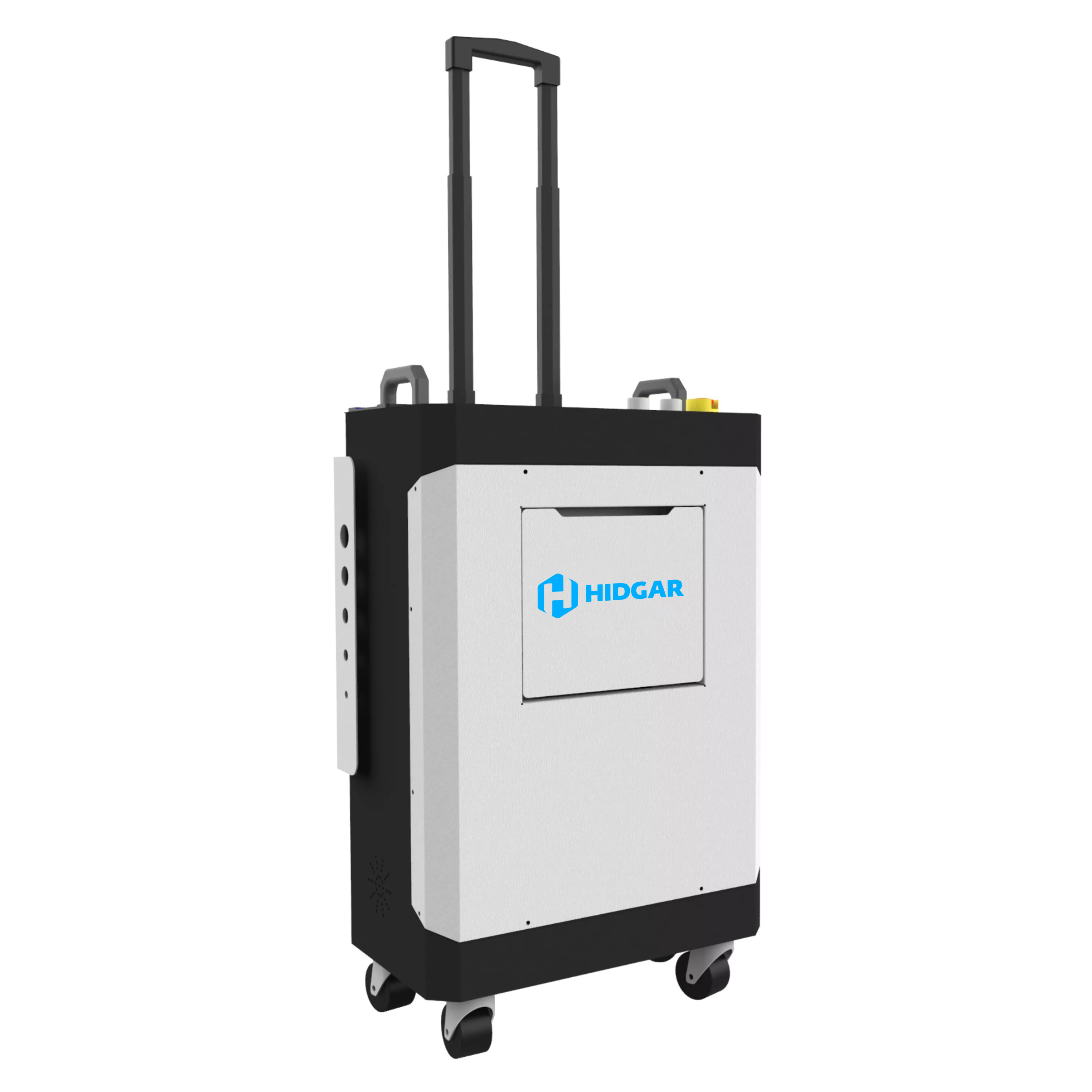

Suitcase Laser Cleaning Machine

No damage to materials, 6 cleaning patterns, Green and environmental protection





Suitcase Laser Cleaning Machine


Features: Improve material utilization: The three-chuck clamping workpiece reduces the generation of waste and has a high material utilization rate.
High cutting accuracy: Independent follow-up support can stably clamp slender pipes to ensure cutting accuracy.

  • Environment Friendly
  • One-Stop Laser Solutions
  • Tailored to Your Needs





Green and environmental protection

CNC Laser Pipe Cutting

Laser cleaning machines offer high cleaning standards through fixed-point contact cleaning, effectively removing micron-sized pollution particles while also protecting brittle material surfaces. They are environmentally friendly and do not require any consumables. Moreover, they avoid any damage caused by chemical corrosion as they do not use chemical cleaning agents.



No damage to materials

CNC Laser Pipe Cutting

Pulsed laser beam offer precise positioning and cleaning without damaging materials, making them ideal for sensitive surfaces such as aluminum, carbon, stainless steel, carbon fiber-reinforced polymers, or coated materials. They can clean even minor crevices and offer high flexibility in use.

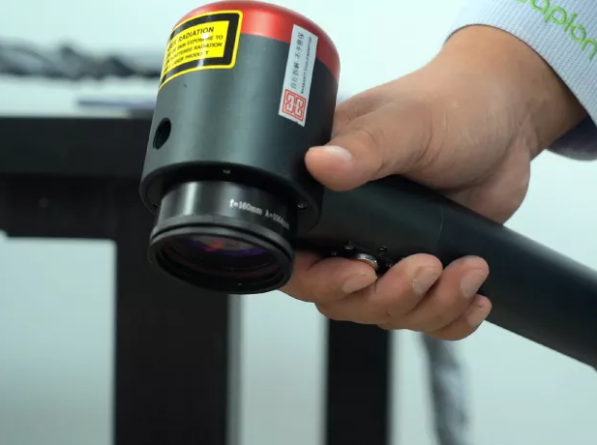

Laser cleaning head

CNC Laser Pipe Cutting

The laser cleaning head has a clever internal design that is completely sealed, preventing the optical part from being polluted by dust. It's also lightweight and ergonomically designed for a comfortable grip. The operation is simple and easy to learn with just one hand. The protective lens adopts a convenient drawer structure for easy replacement.

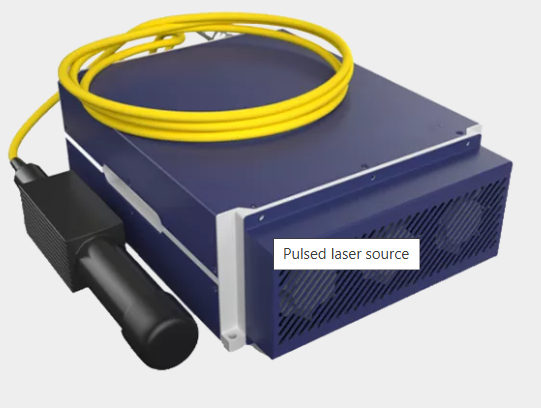

Special pulse laser source

CNC Laser Pipe Cutting

laser cleaner offers pulsed laser power ranging from 100w to 1000w. At 100W power, the light is Gaussian, while at 200W power, both Gaussian and flat-top light are optional. When the power is above 300W, the light is flat-top. Gaussian light provides relatively concentrated energy for deeper cleaning, while flat-top light distributes energy evenly, resulting in a relatively smooth surface after cleaning.

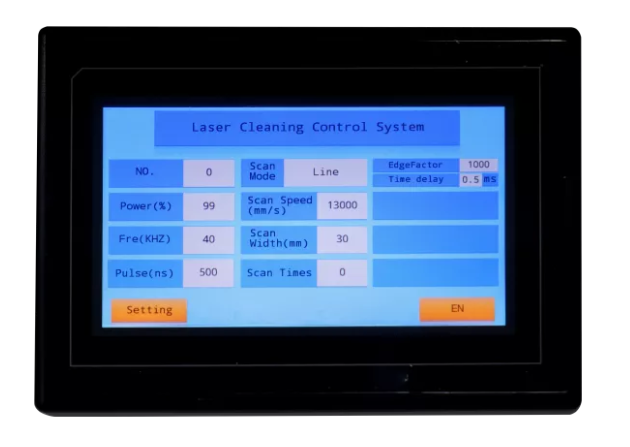

Laser cleaning system

CNC Laser Pipe Cutting

Laser cleaning system features a touch screen control panel with eye-catching buttons that supports multiple languages. Various parameter graphics are pre-stored, and six cleaning patterns are available, including straight line, spiral, circle, rectangle, rectangle fill, and circle fill. Additionally, 12 different modes can be quickly switched and selected, making it convenient for production and debugging purposes.

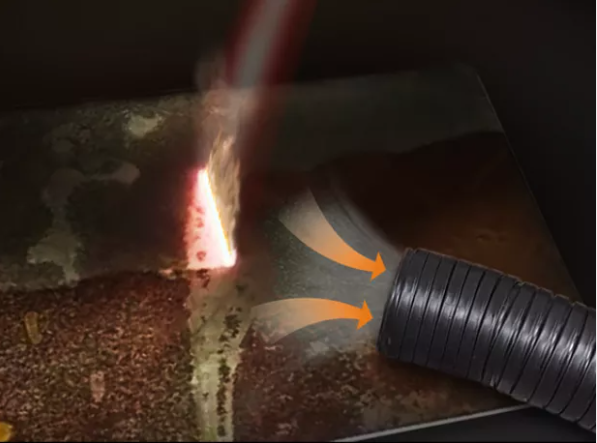

Smoke purifier

CNC Laser Pipe Cutting

If a laser cleaning machine is equipped with a smoke purifier during the cleaning process, it can effectively remove most of the smoke and dust, thereby avoiding harm to the operator and the environment. Additionally, the dust can be filtered and collected through the machine's 4-stage filter dust collection system.



Mode DT- Laser Cleaning Machine QXS Max average power (W) 100, 200, 300, 500, 1000
Laser Type Pulsed Laser Power range (%) 10 - 100
Fiber Laser Power 100w-1000w Output central wavelength 1080
Laser head scanning range 100 × 100, 180 × 180 Bandwidth (nm) 4-6
Head Type LightWeight Handheld Pulse repetition rate (kHz) 20
Cooling Type Wind Cooling Min bending radius (mm) 200
Laser Source Brand MAX, Raycus, IPG, Reci, Leapion, etc. Fibre length (m) 5 or 10
Control Panel Touch Screen System power supply requirement 220V or 380V
Laser head operating mode Manual/Auto Power Consumption (W) < 2000

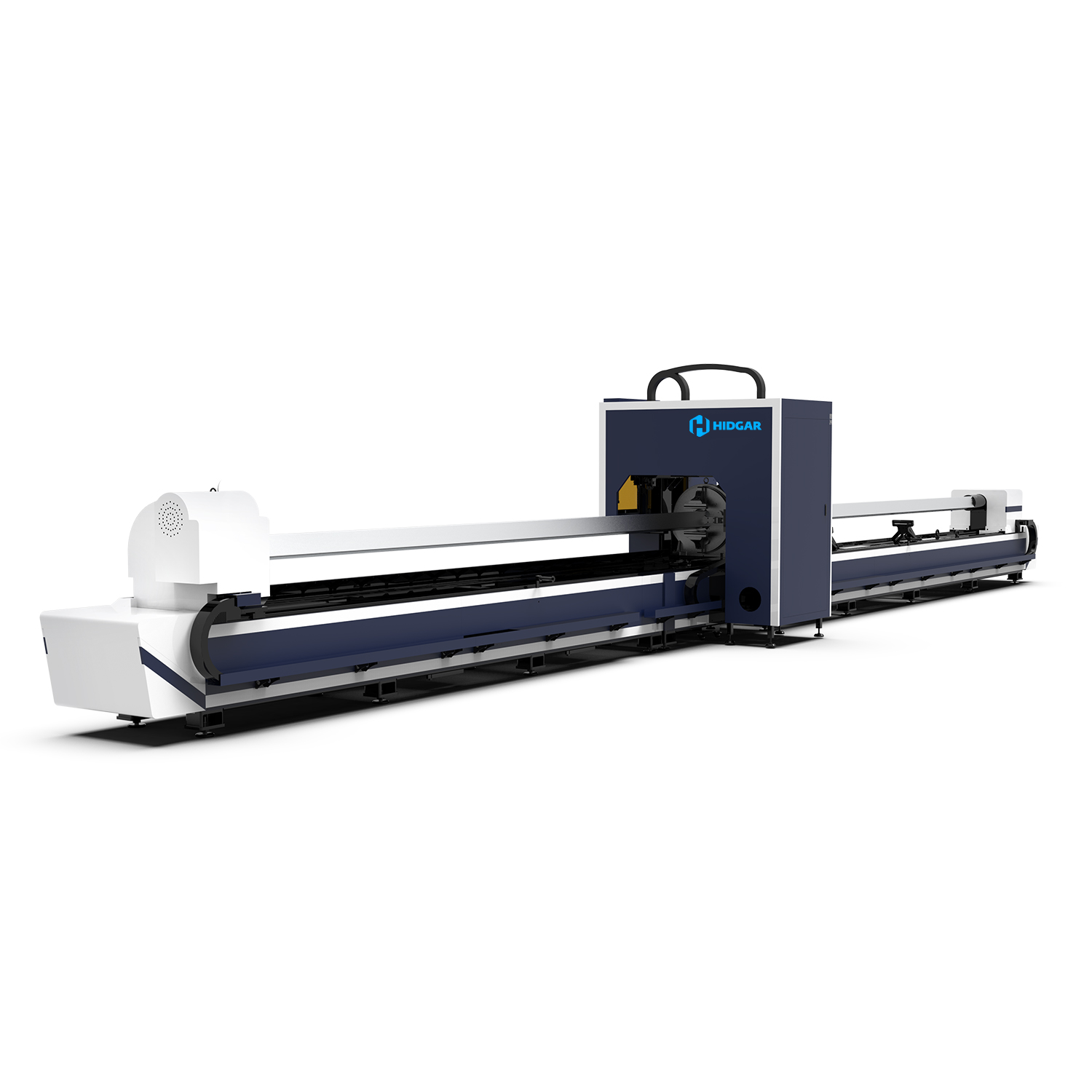

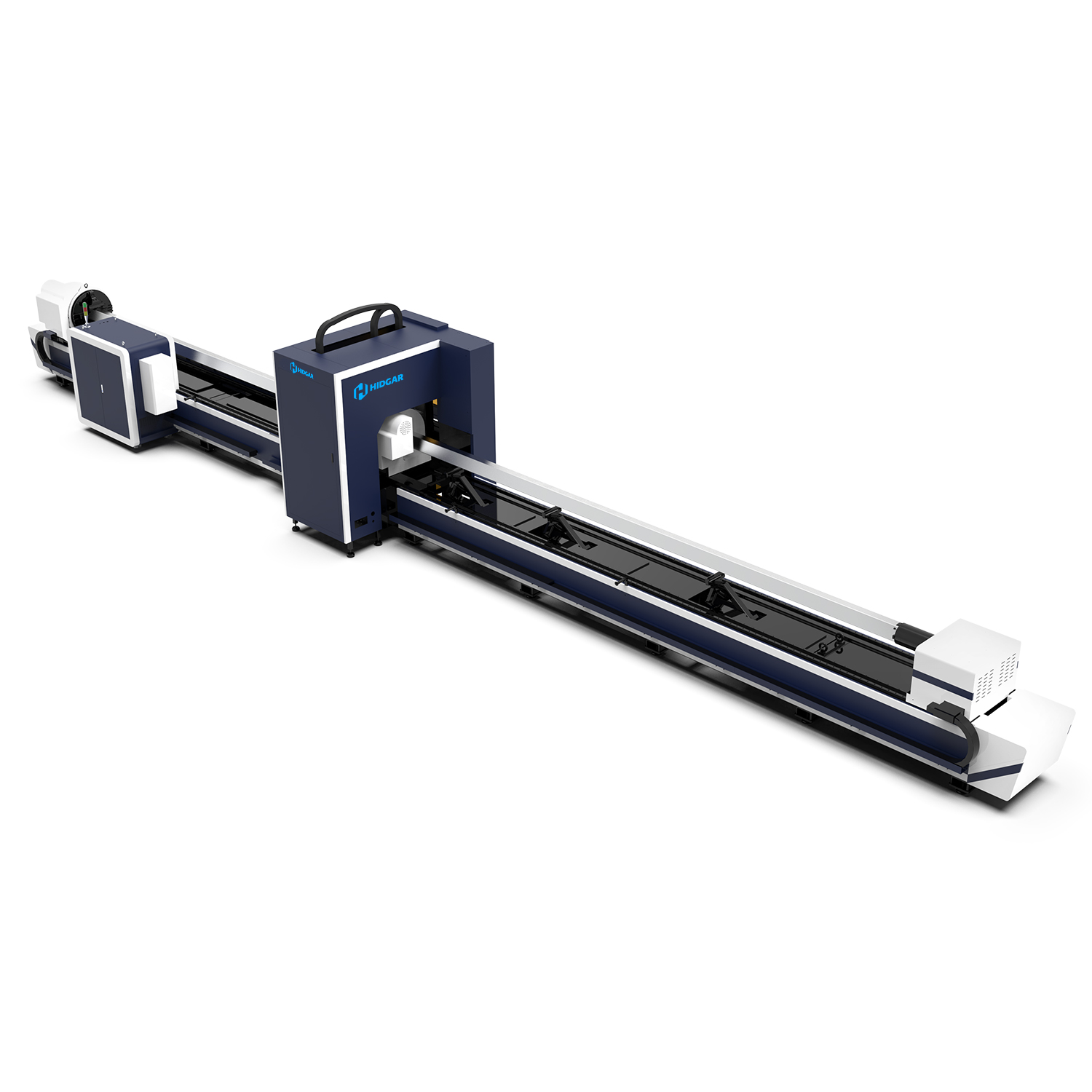

Tube Laser Cutting Machine Key Features

Sheet Metal

Aerospace

Sheet Metal

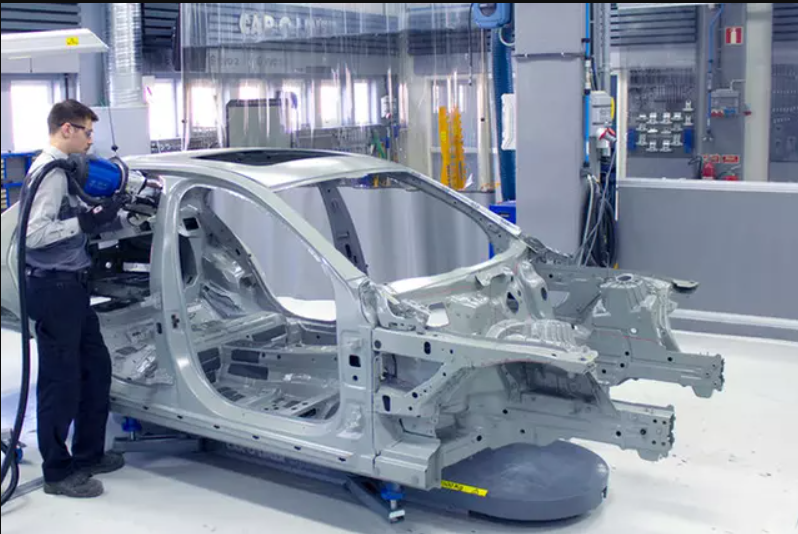

Automobile industry

Sheet Metal

new energy

Sheet Metal

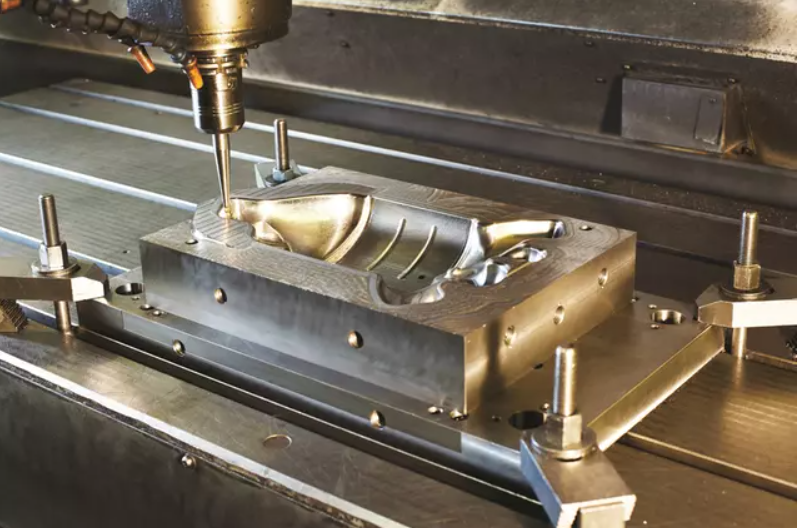

Mold products

Sheet Metal

Marine ship

Sheet Metal

Rail transit
