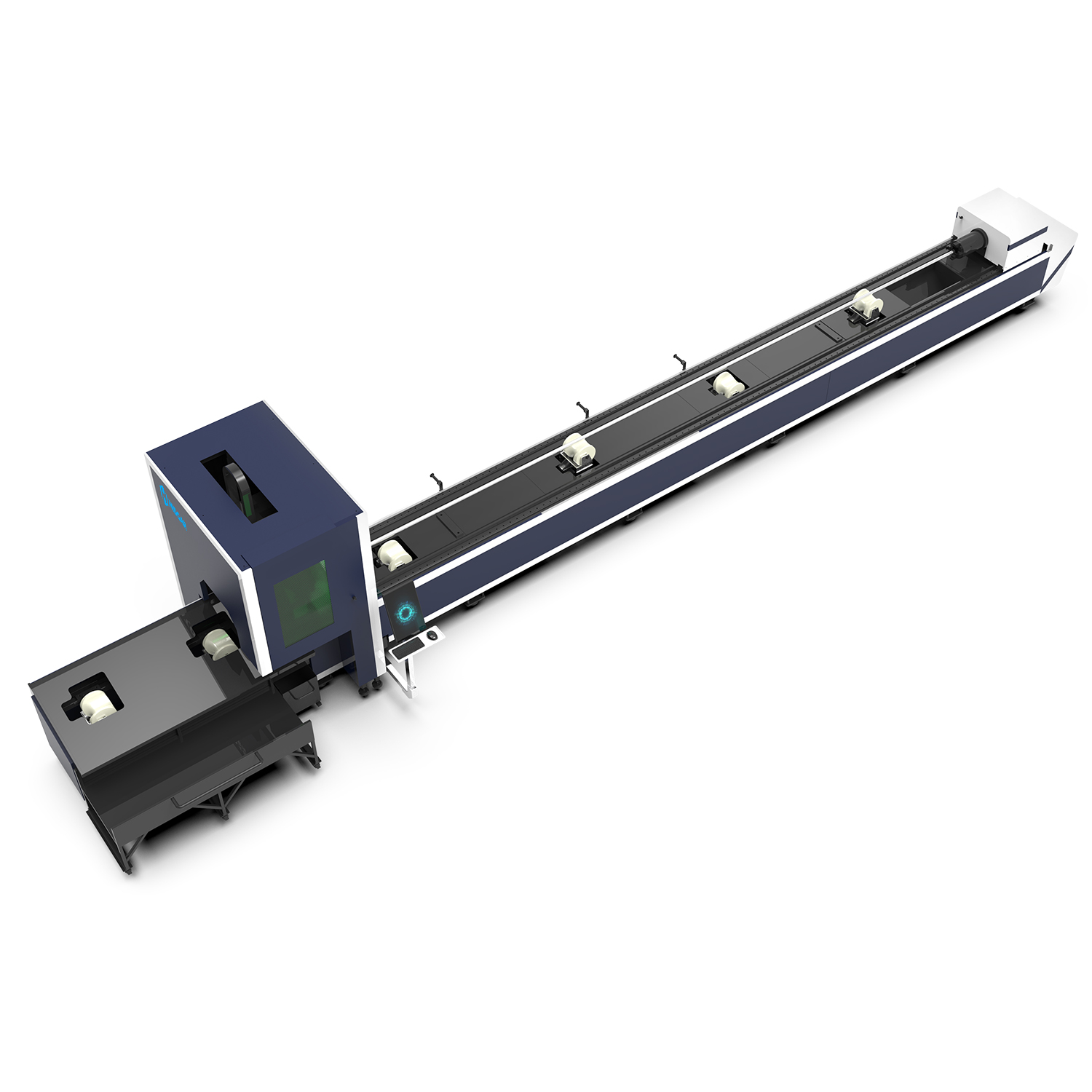

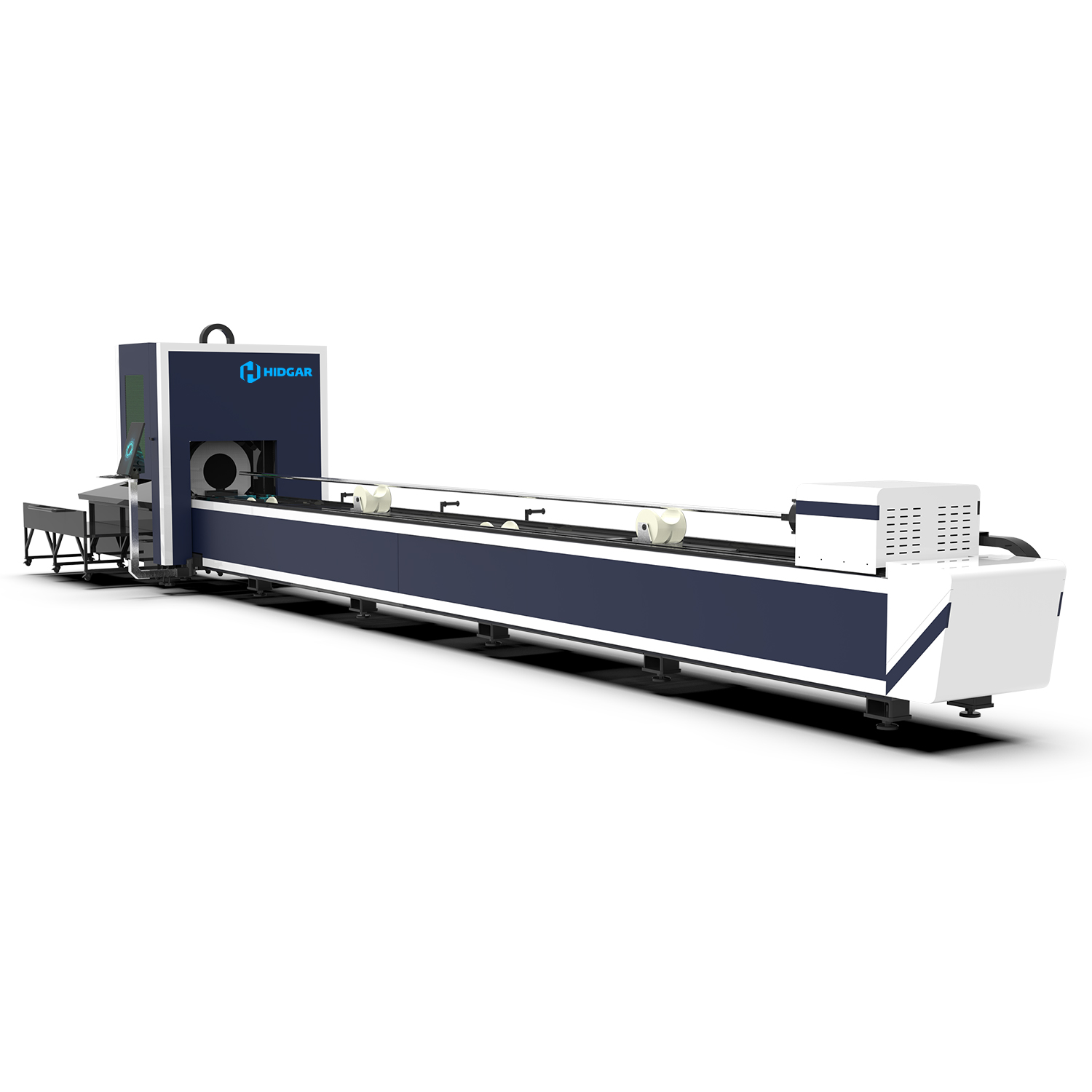

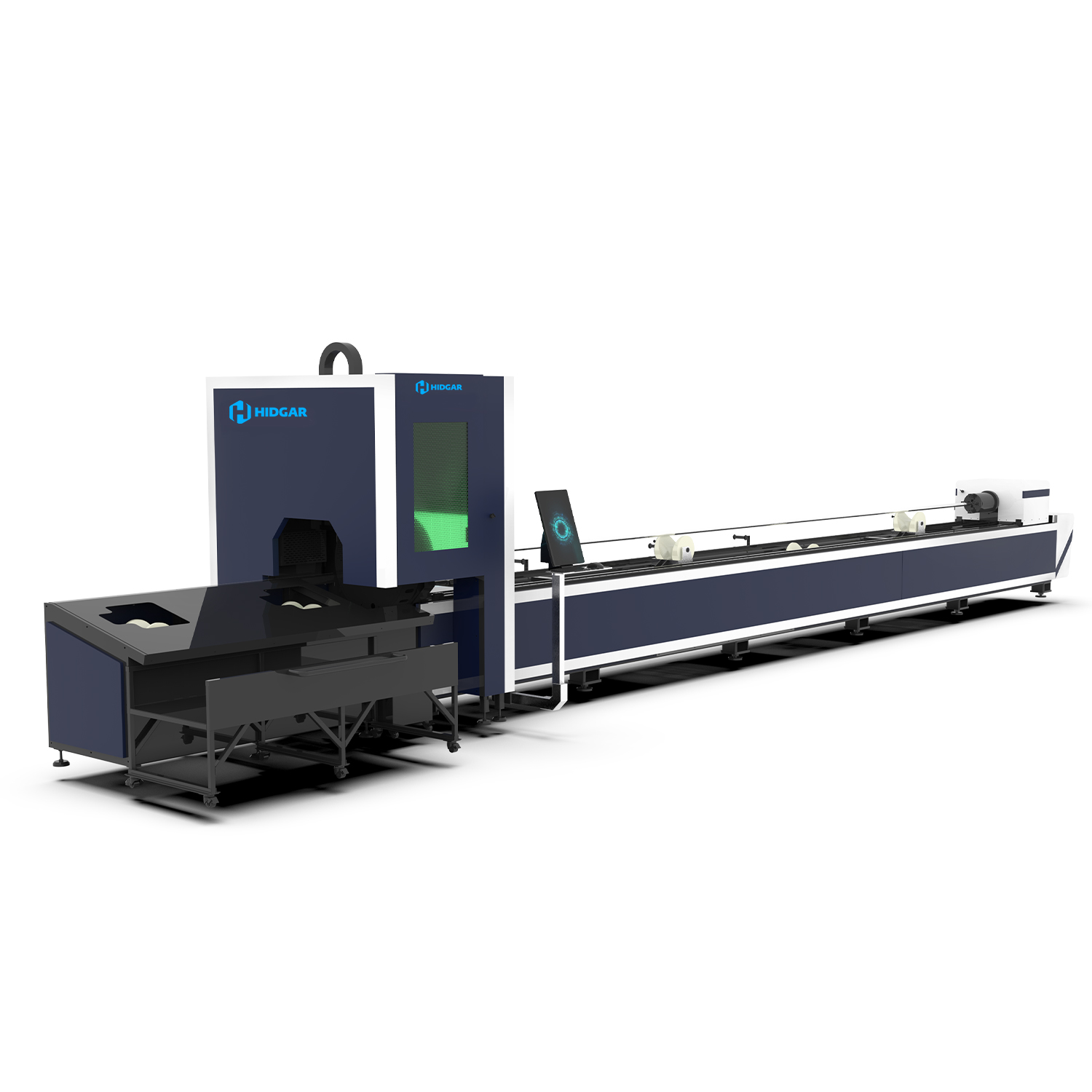

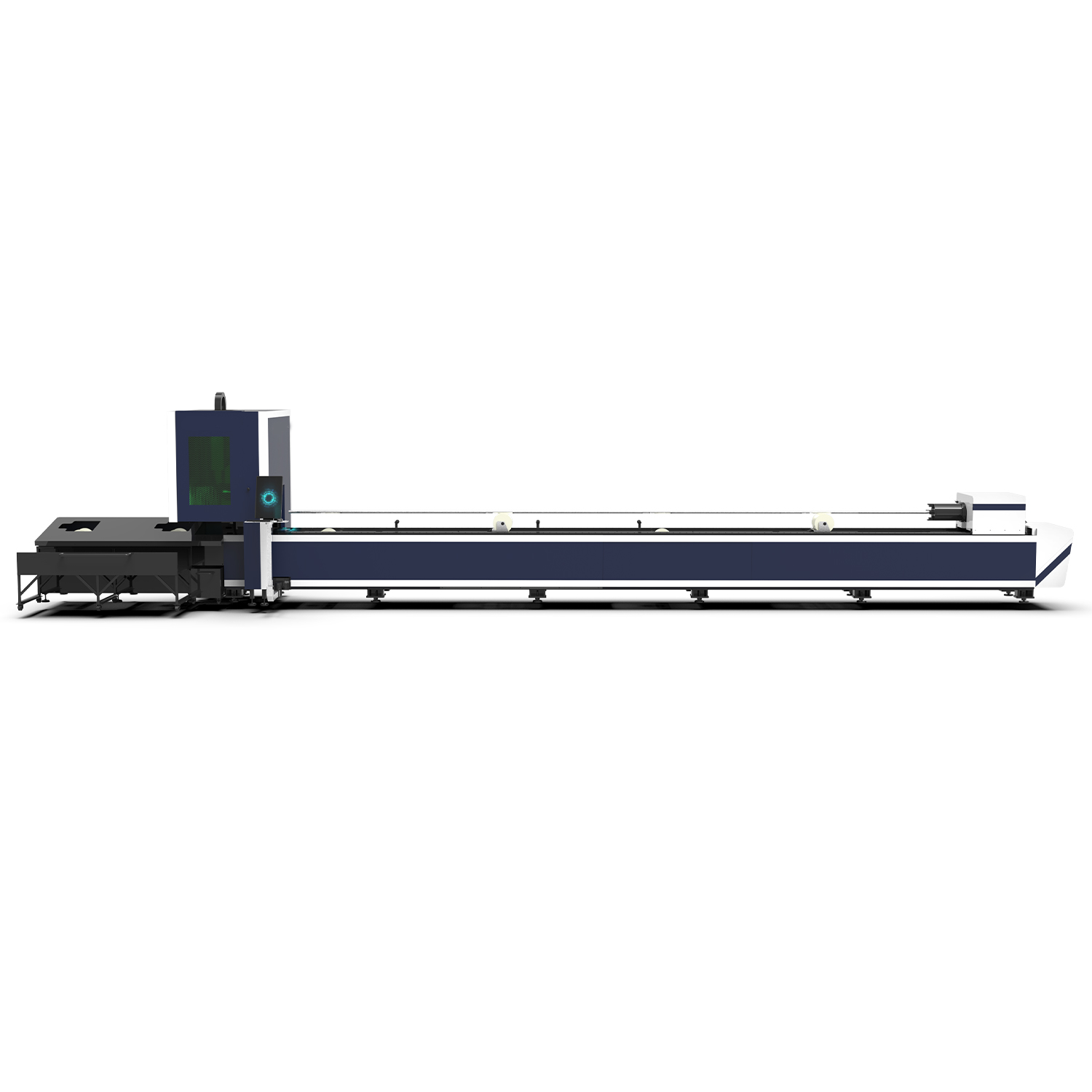

Standard CNC Tube Laser Cutting Machine

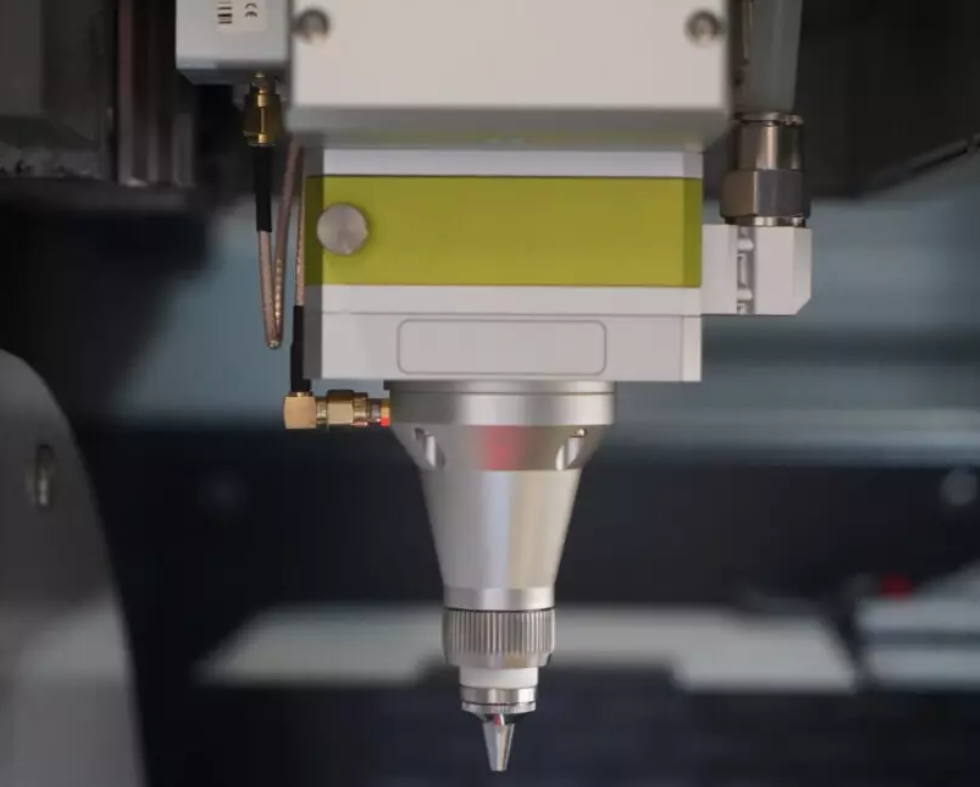

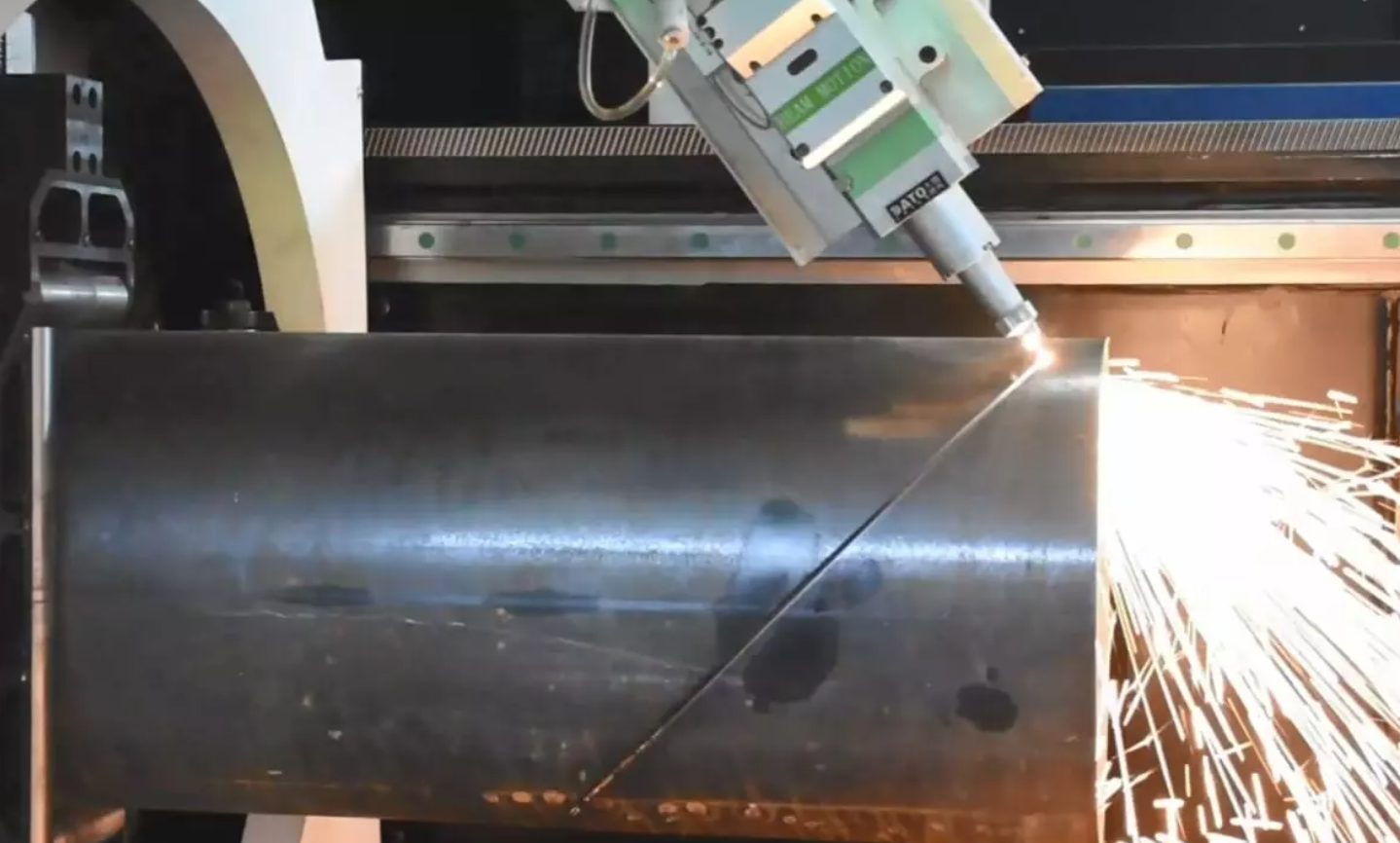

3D Precision Cutting Head | Customizable Bed Length

Standard Power Fiber Laser Cutting Machine

Tube Laser Cutter Product

Features:The cutting section features a protective cover, and the pneumatic protective door can be easily opened with button control for inspecting the cutting head.The bed can be customized to accommodate different lengths based on customer requirements.

Cutting-Edge Technology
One-Stop Laser Solutions
Tailored to Your Needs

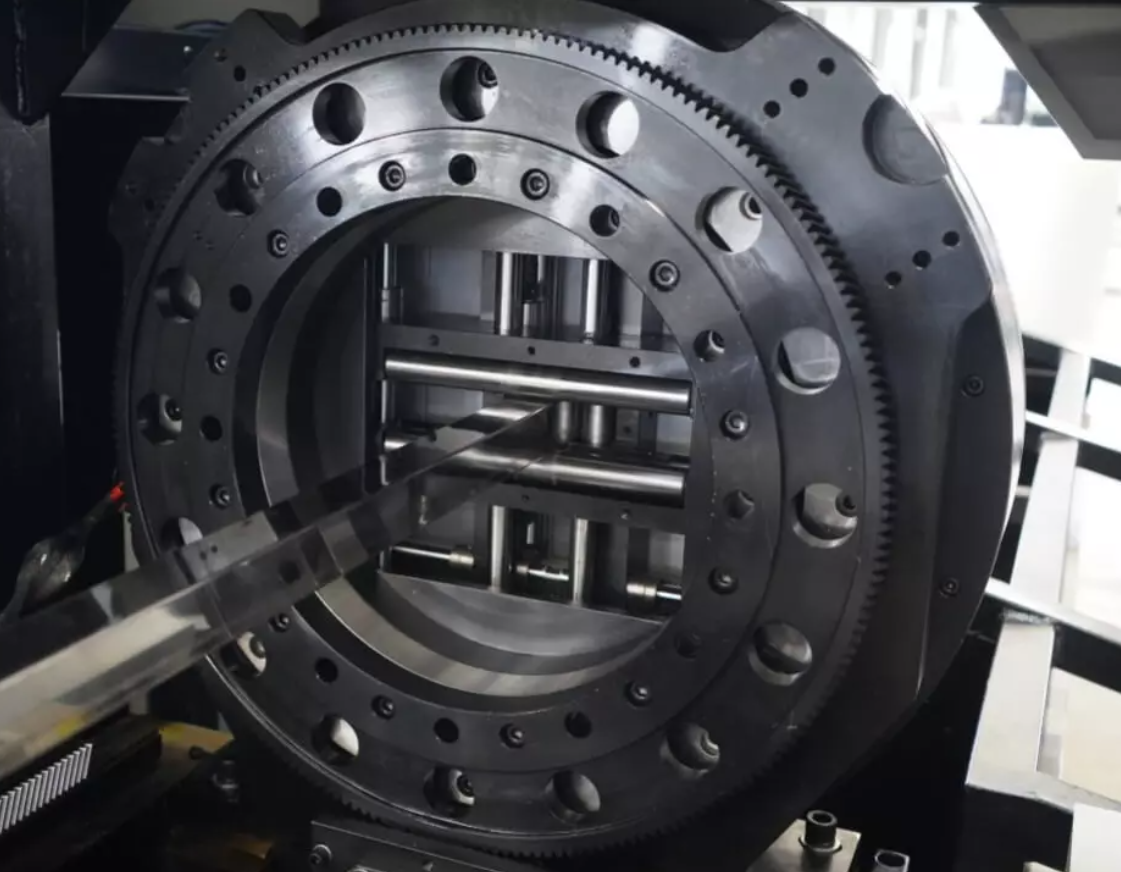

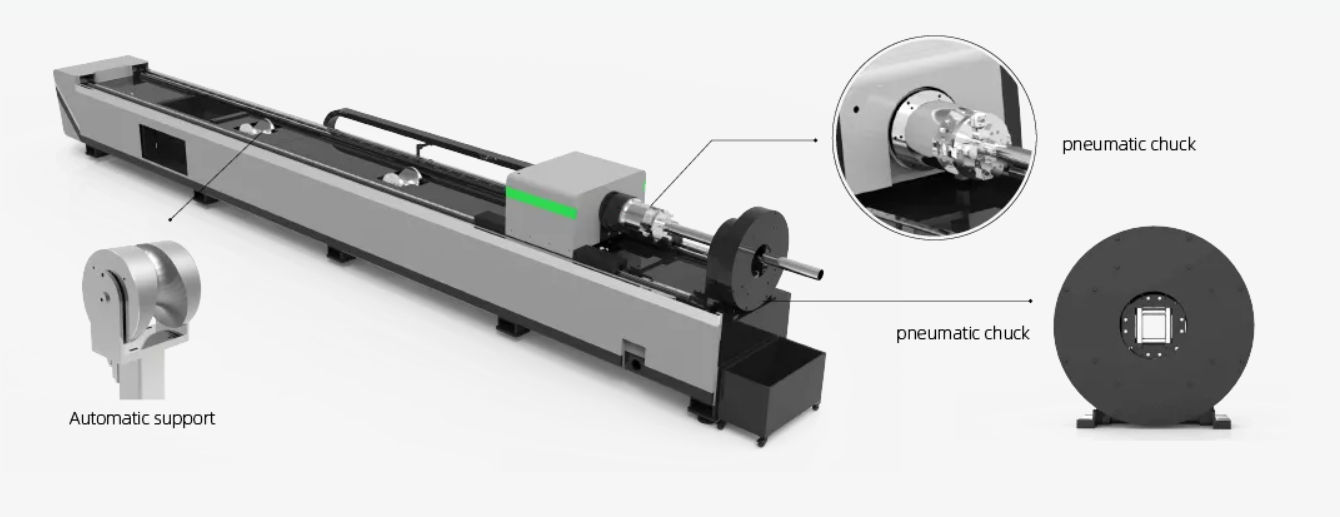

Automatic Clamping

The standard fiber laser tube cutting machine features fully automatic pneumatic chucks at both the front and rear ends. These chucks offer a diagonal adjustable range of 20-350mm, providing versatile and secure clamping options for a wide variety of tube sizes.

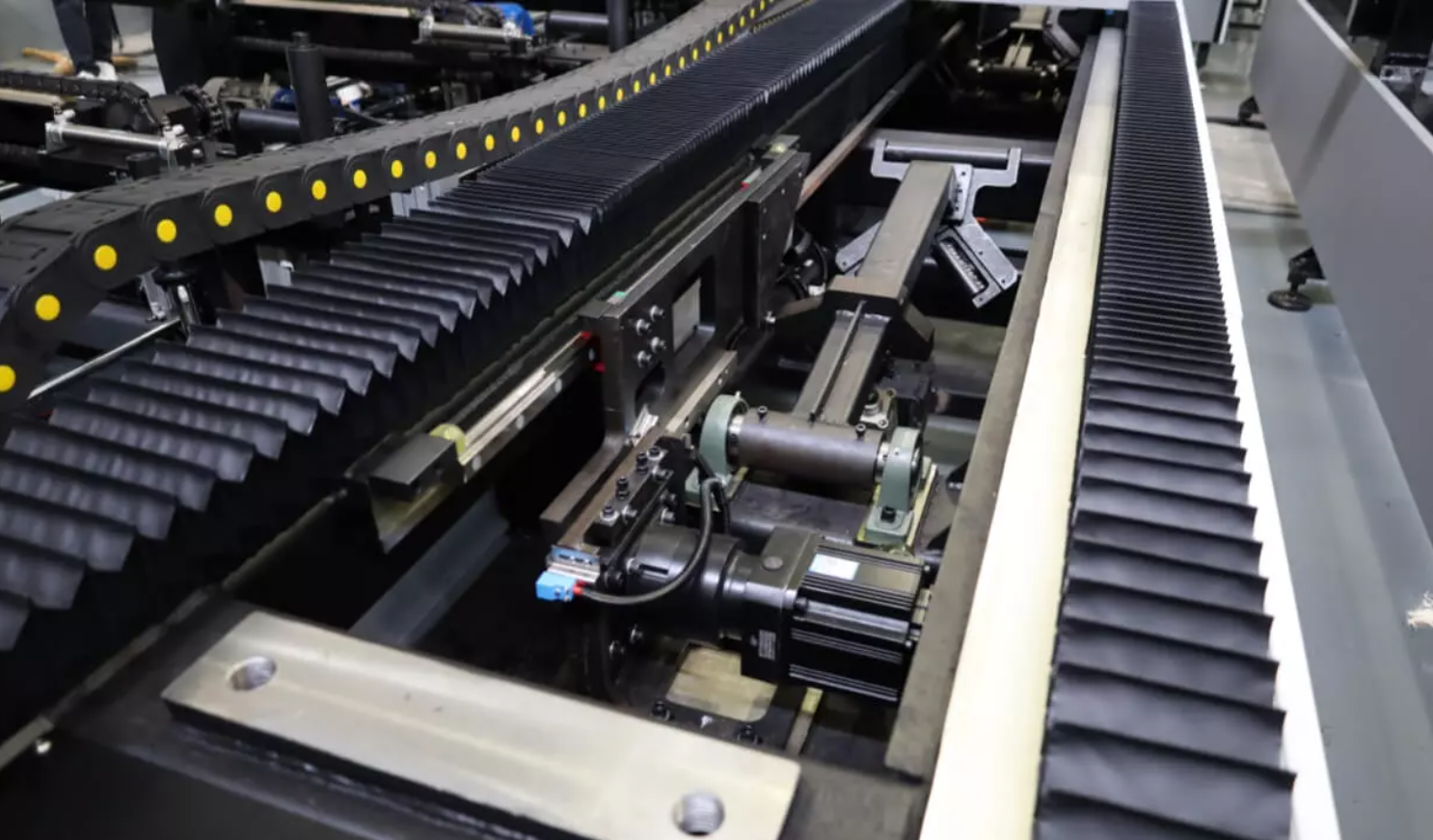

Automatic Support Bracket

Our machine comes with an intelligent automatic support bracket system that adapts to various types of pipes. This innovative feature effectively solves the issue of long pipe deformation, ensuring consistent cutting quality across different materials and lengths.

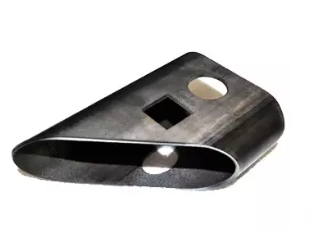

Intelligent Recognition

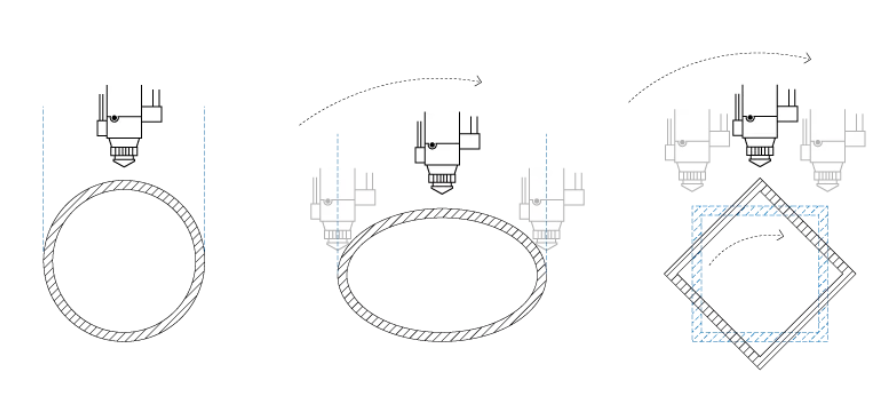

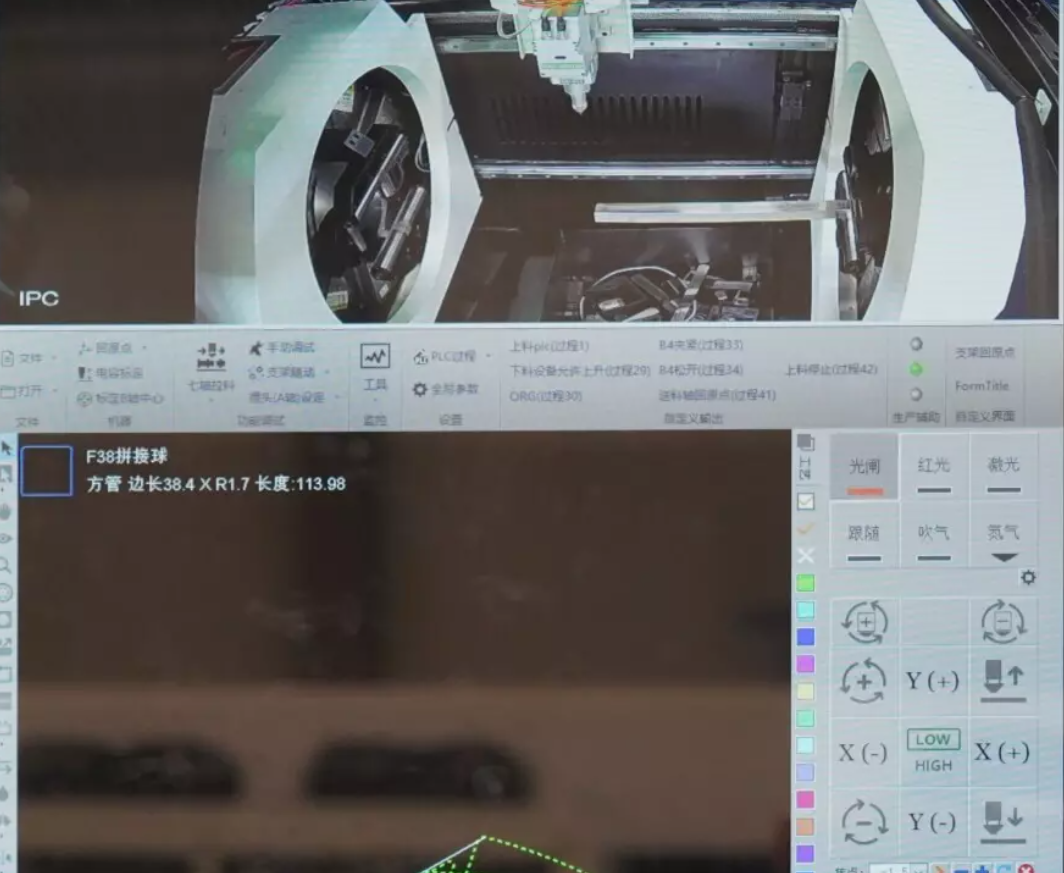

With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.

Tube Laser Machine Technical Parameters

Mode	T-6024H2	T-6035H2
Min Diameter	Φ20mm □20mm	Φ20mm □20mm
Max Diameter	Φ240mm □240mm	Φ350mm □350mm

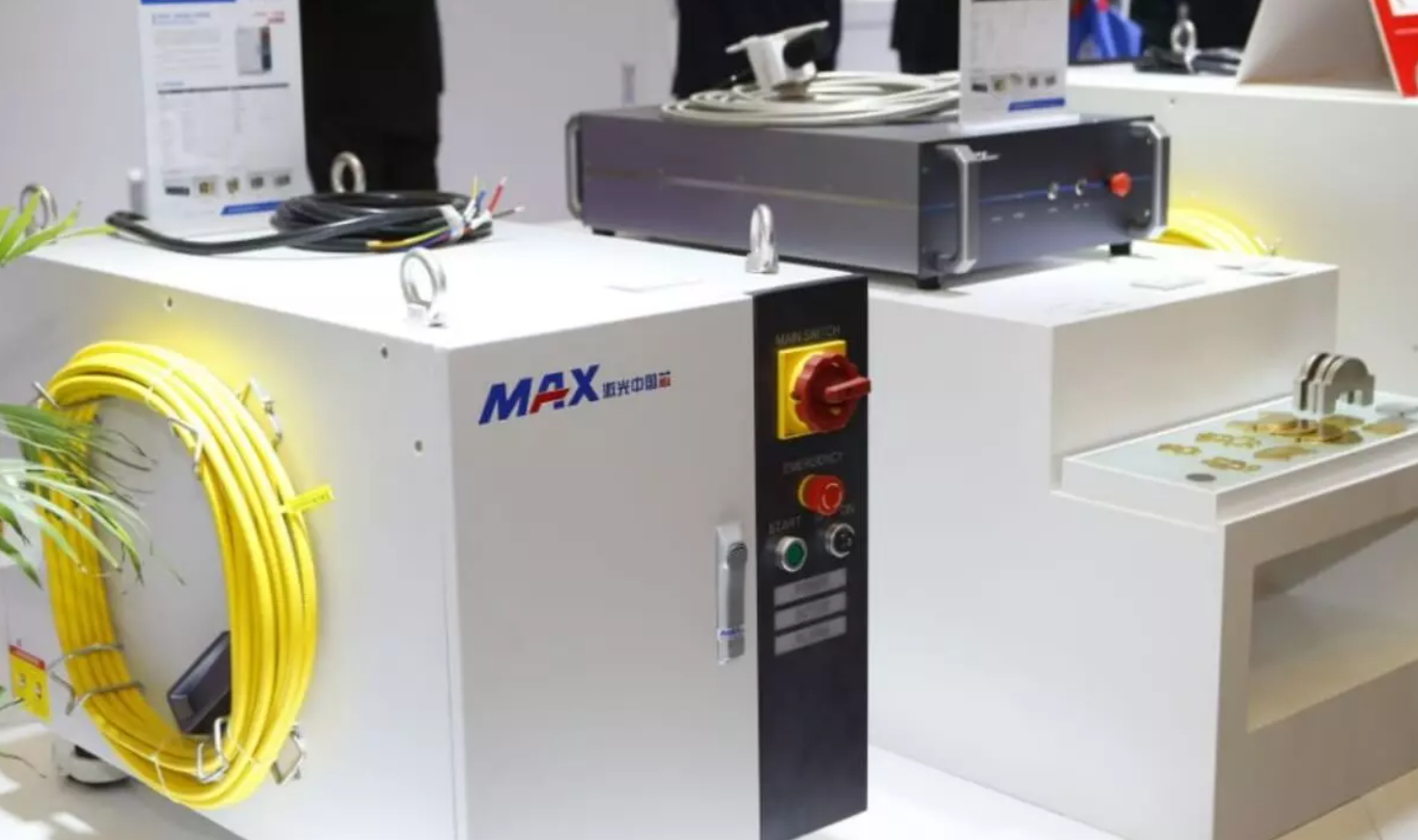

Laser Power Supply	1500w, 2000w, 3000w, 6000w
Maximum Acceleration	1.5G
Positioning Accuracy	±0.03mm
Voltage	380V 3PH50/60HZ
Chuck Speed	60r/min
Upgrade	Alr Conditioner, Smoke Puriher, Air Compressor, Voltage Reglator, Satety Lignt Curtain
