Large Size Fiber Laser Cutting Machine: High power and high precision

Efficient and cost-effective option for the construction and automotive industries

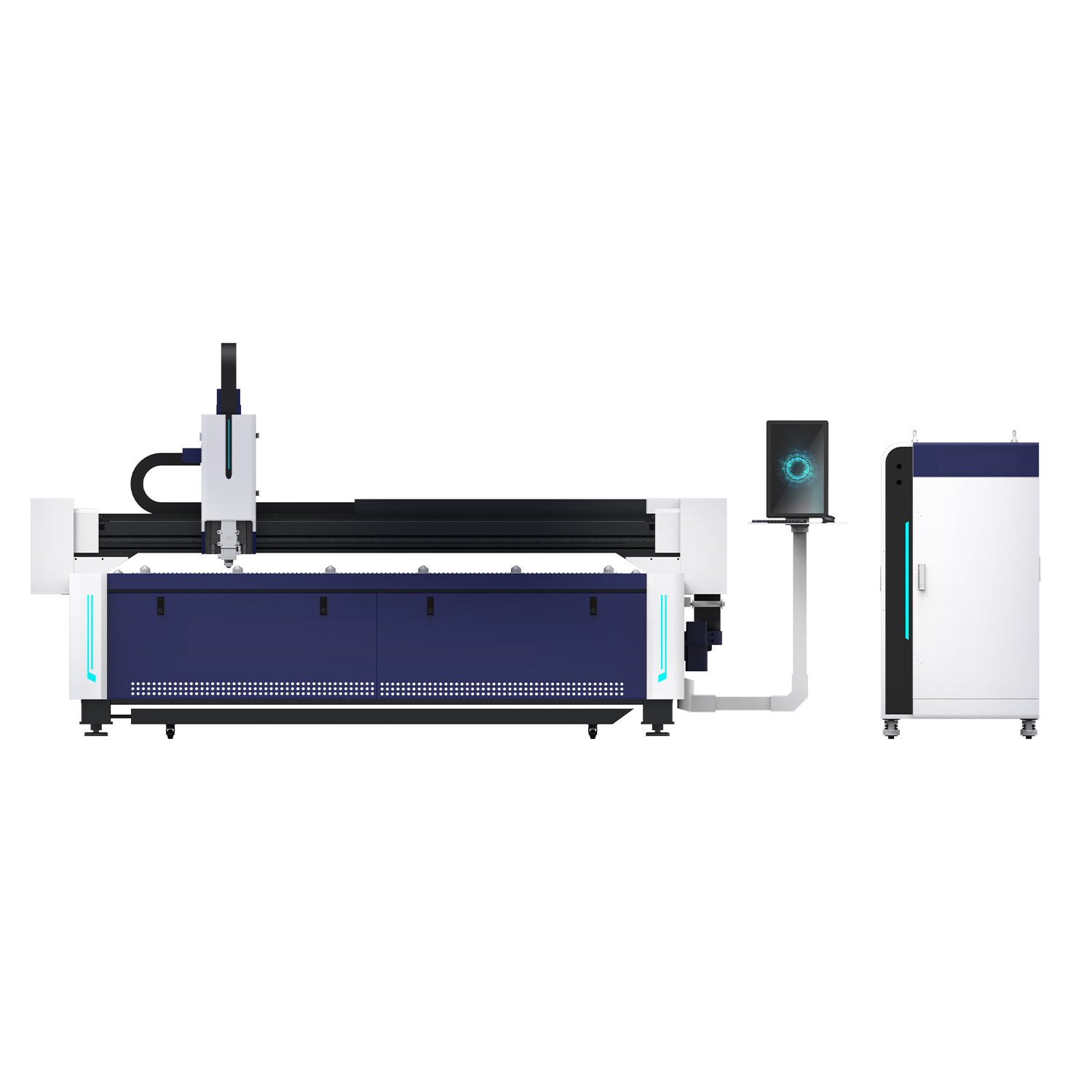

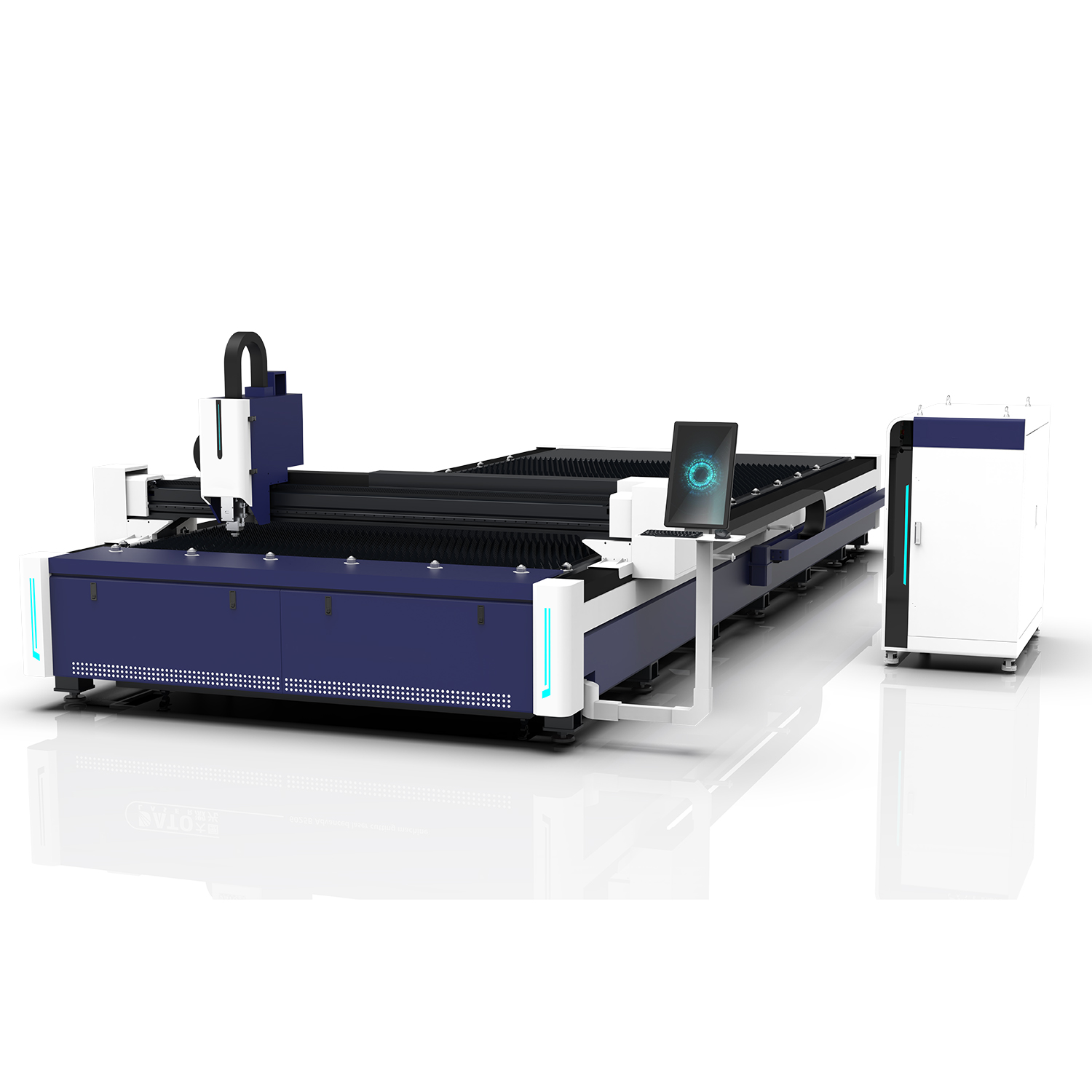

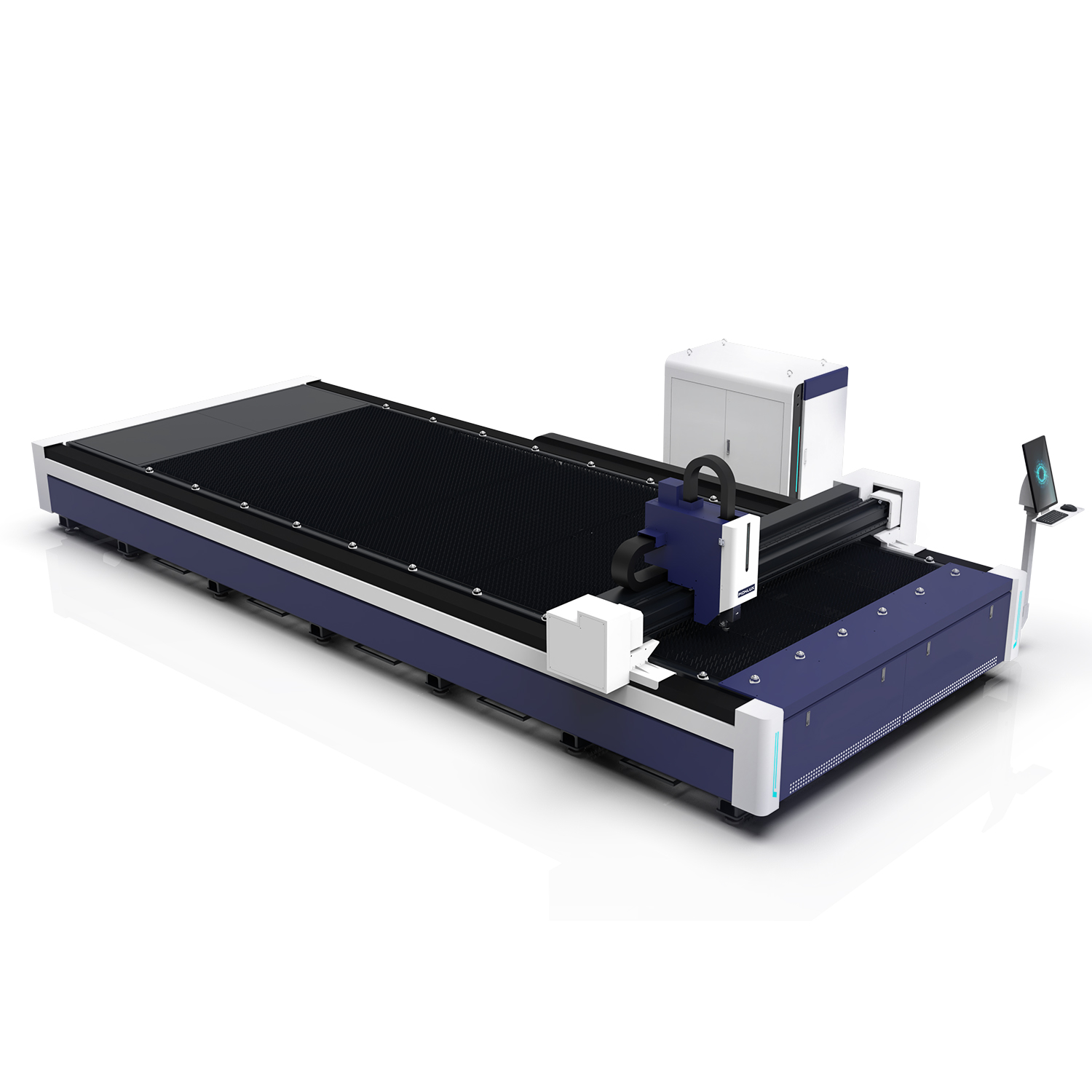

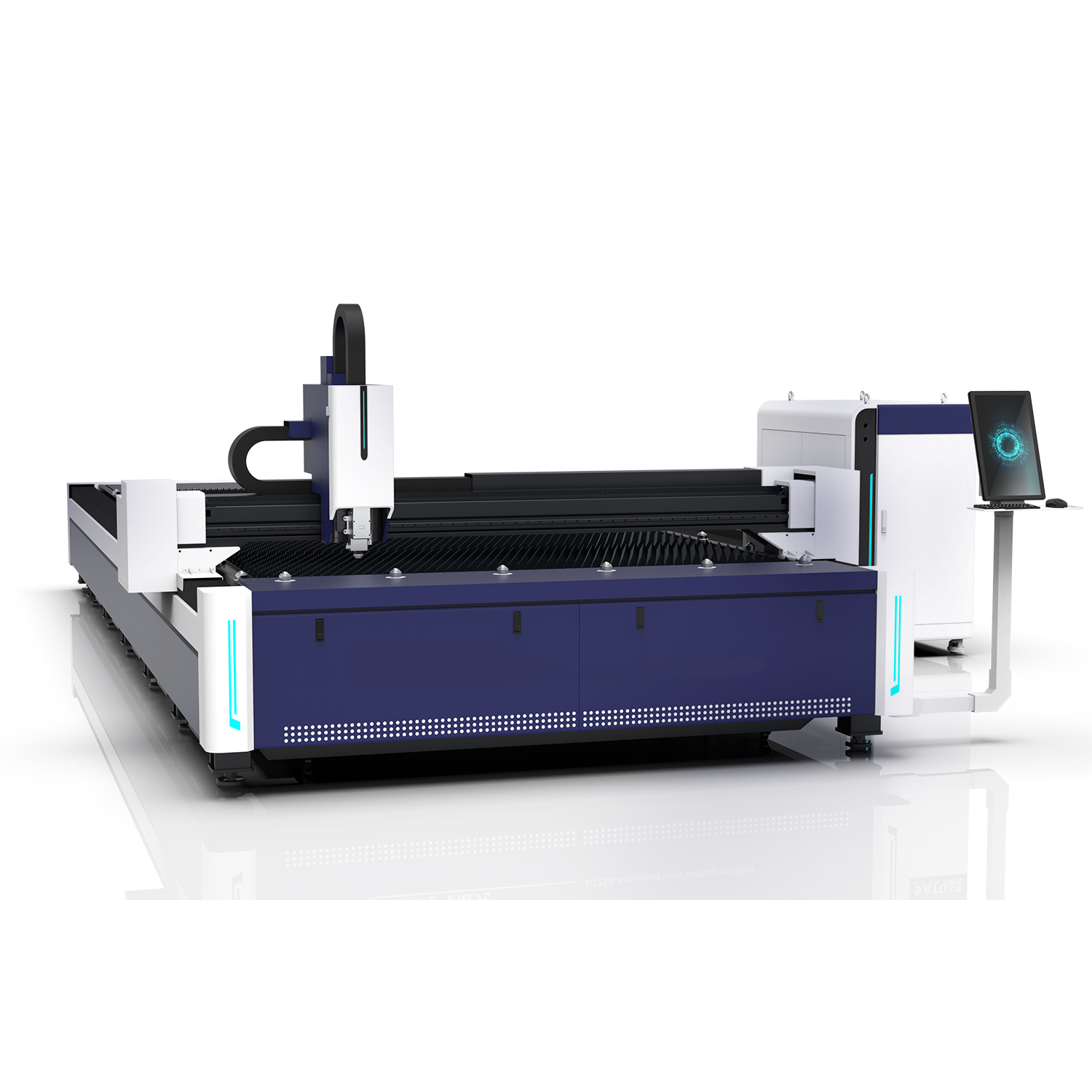

Large Size Fiber Laser Cutting Machine


Features: Efficient and precise large-format laser cutting machine, ideal for large-scale production processing. LF-L perfectly integrates comfortable and convenient operating space, safe product performance, and excellent new smart interconnection experience.

Laser power:12000w, 20000w, 50000w
  • Precision Cutting Made Affordable
  • Ease of Use for Beginners
  • Ideal for Large-Scale Metal Work





Metal Laser Cutting Machine Technical Specifications

Mode LF-3015B LF-6015B LF-4020B LF-6025B
Working Area 3000*1500mm 6000*1500mm 4000*2000mm 6000*2500mm
X Y Z Axis Stroke 1520*3100*100mm 1520*6050*100mm 2040*4050*100mm 2510*6100*260mm
Laser Power Supply 2000w, 3000w, 6000w, 12000w, 20000w
Maximum Acceleration 2G
Positioning Accuracy ±0.03mm
Voltage 380V 3PH 50/60HZ
Cutting Ability Carbon Steel: 1-80mm, Stainless Steel: 1-70mm, Aluminum: 1-60mm, Brass: 1-20mm
Upgrade Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator

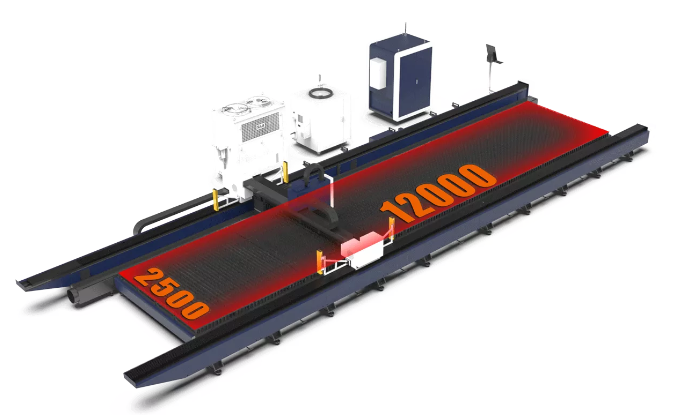

Extra Large Cutting Area

Easily achieve overall processing of oversized workpieces and fast and precise cutting of metal sheets to meet more cutting needs.

LF-EA's Flexible Component Options

Choose from a range of laser source, control system, and laser cut head for a machine that's tailored just for you.

Metal Laser Cutting Machine Features

Cast Aluminum Beam
Sheet Metal

Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions. Precision is maintained.

Laser Cutting Head
Sheet Metal

The laser cutting head on our machine is state-of-the-art.

Hollow Steel Structure
Sheet Metal

Wireless handheld operation for ease and sensitivity. Perfectly compatible with the latest CNC system software and hardware.

Wireless
Sheet Metal

CNC system is cutting-edge. Its 32-inch touch screen improve user experience. Dynamic adjustments make it over 60% quicker than traditional systems.

Intelligent Operating System
Sheet Metal

The electrical cabinet is designed for optimal power management. It ensures that power distribution is efficient. The operation of the machine remains reliable and safe at all times.

Chiller Unit
Sheet Metal

A chiller unit is included to regulate the laser's temperature. Consistent performance is maintained. It also extends the lifespan of the machine. Dependability is enhanced.



Sheet Metal

Metal Fiber Laser Cutting Machine:

Master every metal challenge with Leapion's fiber laser cutting machine with exchange table. From stainless steel to titanium, achieve precise, clean cuts. Explore the versatility and power of our machines.



Sheet Metal

Laser cut carbon steel

Sheet Metal

Laser cut carbon steel

Sheet Metal

Laser cut brass

Sheet Metal

Laser cut stainless steel

Sheet Metal

Laser cutting metal

Sheet Metal

Laser cut aluminum



Sheet Metal

Automotive manufacturing

Sheet Metal

Aerospace

Sheet Metal

Shipbuilding industry

Sheet Metal

Agricultural machinery

Sheet Metal

Achitechive

Sheet Metal

Rail transport
