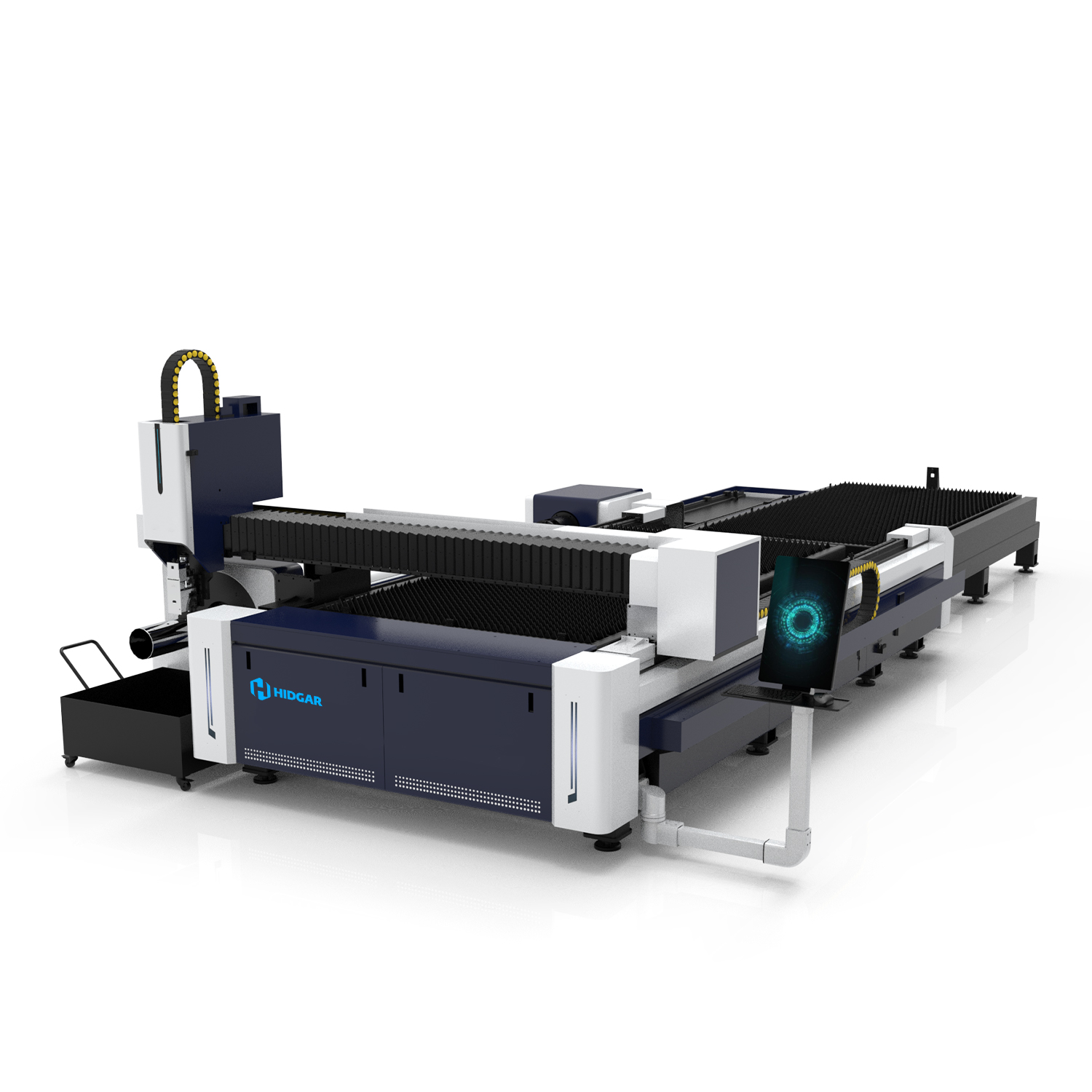

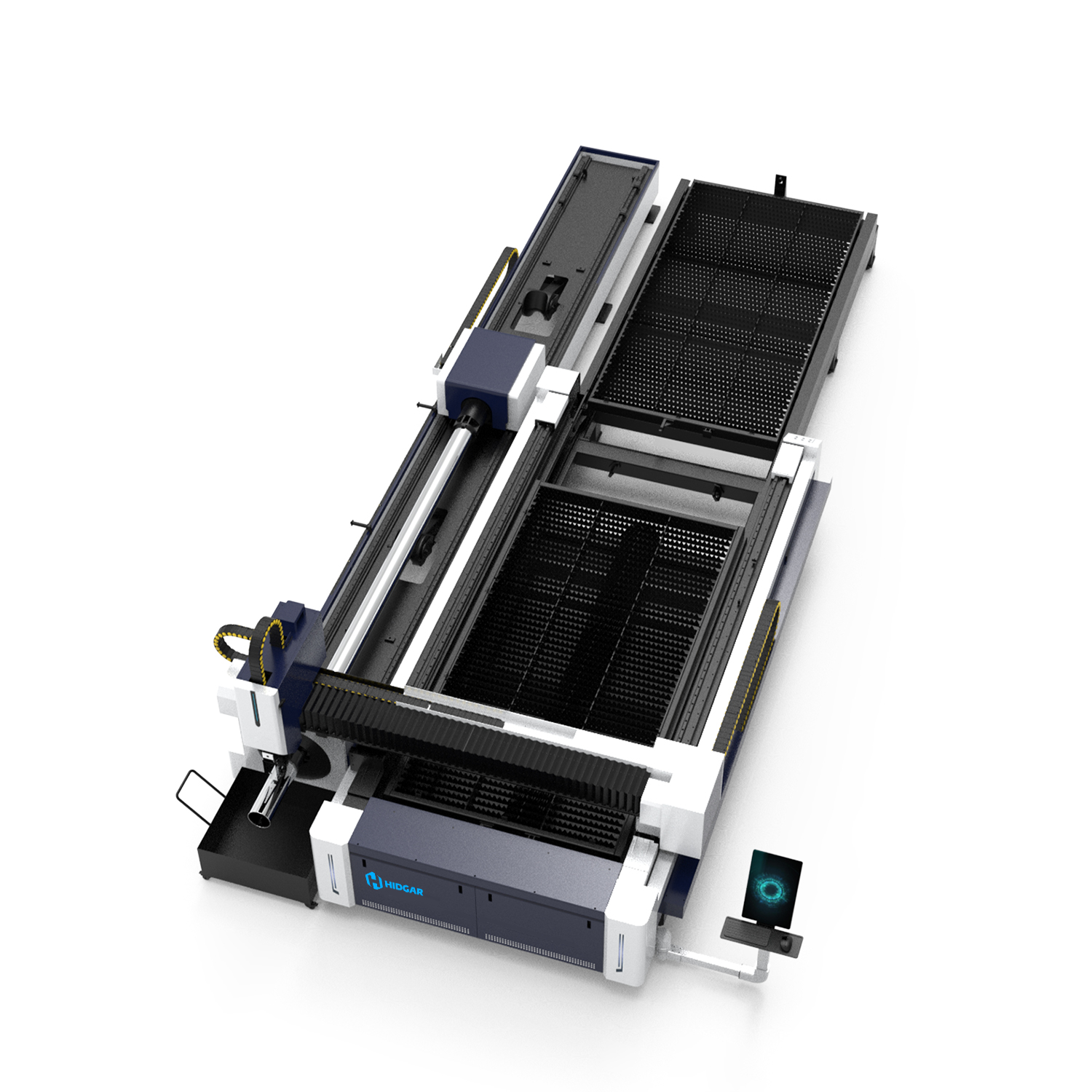

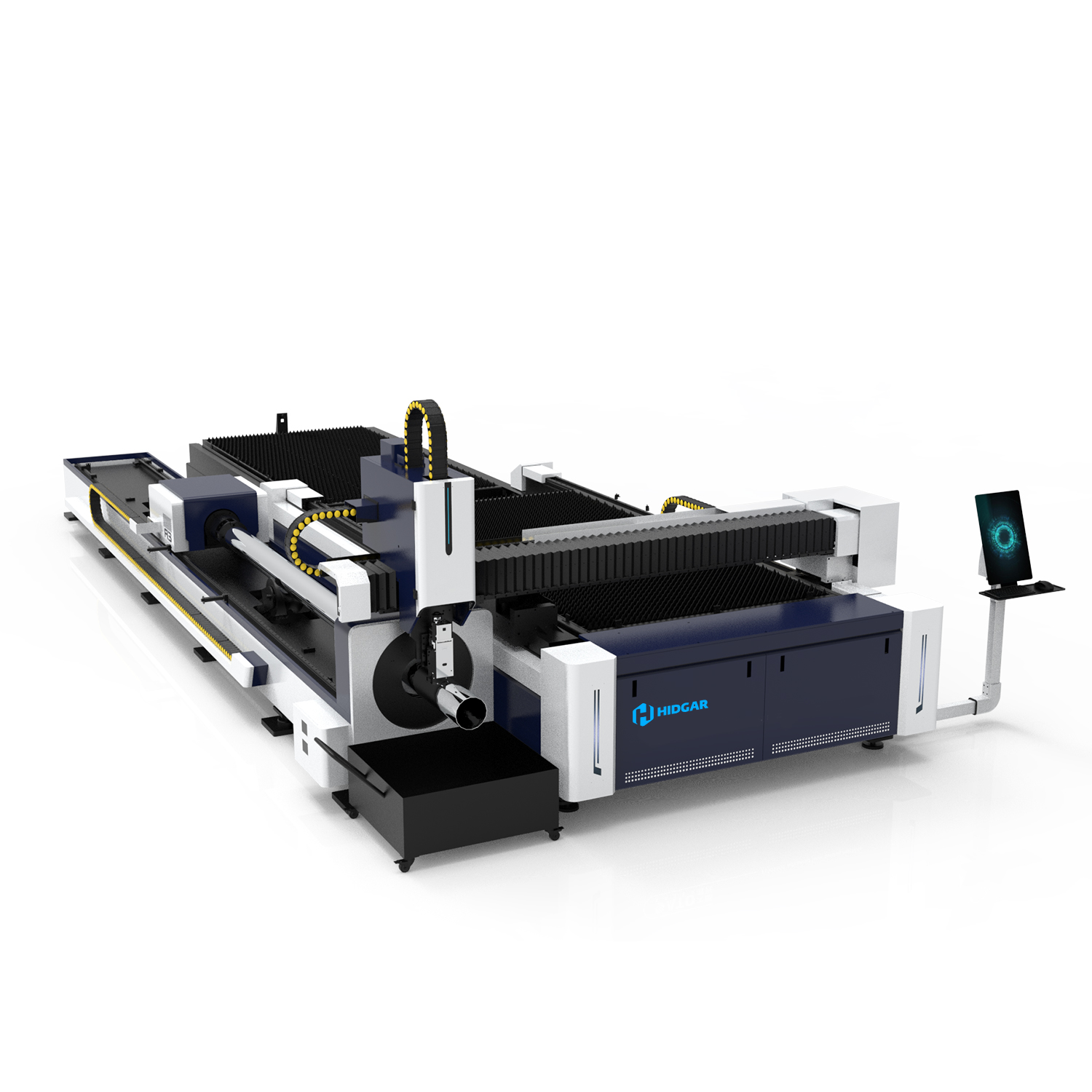

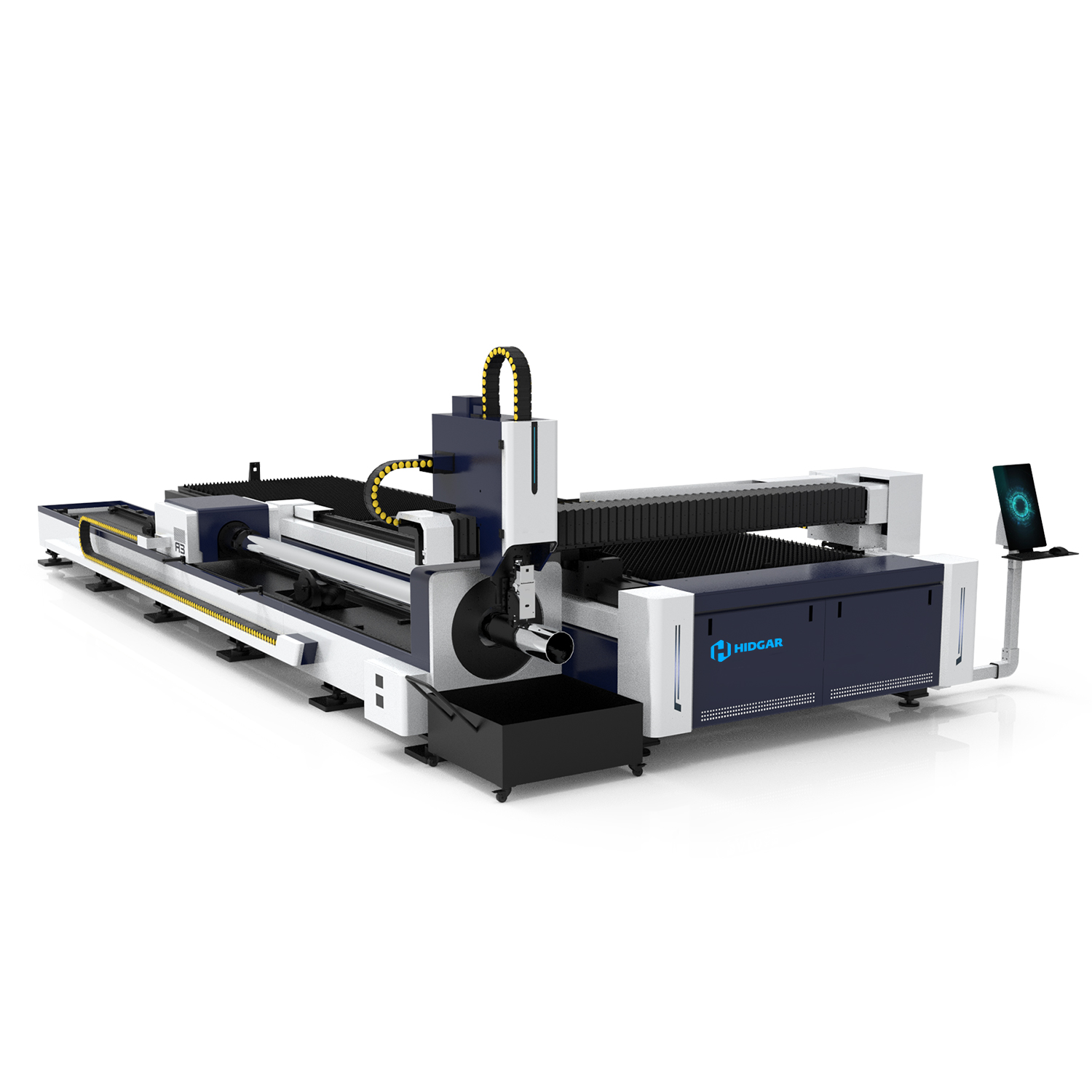

Exchange Platform Sheet and Tube Laser Cutting Machine

Automatic exchange platform, continuous operation is achieved and production efficiency is significantly improved.



Standard Power Fiber Laser Cutting Machine
Thumbnail 1 Thumbnail 2 Thumbnail 3


Exchange Platform Sheet and Tube Laser Cutting Machine


Features:handle both sheet and tube, saving space and money on more machines.Its advanced controls are user-friendly, making it easy to learn and maintain with less downtime.It can easily adjust to various material types and thicknesses

  • User Friendly
  • clean cuts with smooth edges
  • Supports cutting of different diameters pipes





Fully Enclosed Design

CNC Laser Pipe Cutting

  • Rack and Pinion Transmission System: Offers good rigidity and high precision.
  • Easy Loading and Unloading: Ensures high processing efficiency.

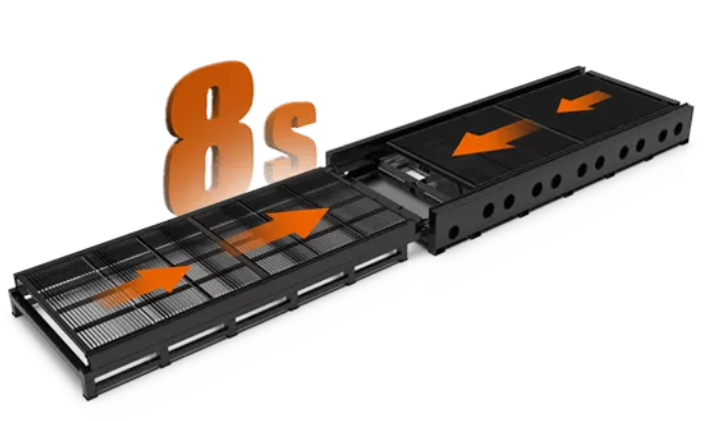

  • High Performance: Outperforms traditional sprocket chain transmission, completing exchanges within 8 seconds.




    • Double Fully-Automatic Pneumatic Chucks

    CNC Laser Pipe Cutting

  • High-precision clamping for precise cutting.
  • Efficient operation, quick response, and improved production efficiency.
  • The performance is stable and reliable, ensuring durability and reducing maintenance costs.
  • It has strong adaptability to various pipe materials and meets diverse cutting needs.




    • High Quality Carbon Steel Plate Welding Machine Bed

    CNC Laser Pipe Cutting

  • Robust stability & rigidity for high-speed and precise cutting.
  • Excellent corrosion & wear resistance in tough environments.
  • High precision & reliability for complex processing needs.
  • Easy maintenance with low costs and simplicity.




    • Auto Focus Laser Head

    CNC Laser Pipe Cutting

  • Adjustable Focal Length: Quickly adjusts to accommodate different power handling needs.
  • Autofocus Function: Enables fast and accurate focusing.
  • High-Precision Design: Achieves a focusing speed of 100 m/s with a repeatability of 1 μm.
  • IP65 Dust-Proof Standard: Equipped with a patented protective mirror cover for complete dust protection without blind spots.
  • Multiple Protection Mechanisms: Includes three protective lenses and a two-way optical water-cooling system.
  • Corrosion & Wear Resistance: Provides durability in tough environments.
  • High Precision & Reliability: Ideal for complex processing needs.




    • Intelligent Operating System

    CNC Laser Pipe Cutting

  • Automatic Nesting Function: Automatically optimizes cutting layout for efficiency.
  • Wireless Handle Control: Offers flexible and convenient operation.
  • File Compatibility: Compatible with various common file formats, such as DXF, PLT, etc.
  • Simple Operating System: Easy to use with fast, intuitive controls.
  • Accurate Cutting Instructions: Ensures high cutting accuracy and quality.




    • TECHNICAL PARAMETERS

    Type F-BT FE-BT FE-BST
    Working area 3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2500mm 3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2500mm 3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2500mm
    Laser output power 1500w / 2000w / 3000w / 4000w / 6000w /12000w / 20000w 2000w / 3000w / 6000w / 12000w / 20000W / 30000W / 40000w / 50000w 2000w / 3000w / 6000w / 12000w / 20000W / 30000W / 40000w / 50000w
    Positioning accuracy 0.05mm 0.05mm 0.05mm
    Repositioning accuracy 0.03mm 0.03mm 0.03mm
    Round tube cutting diameter 20mm~230mm 20mm~230mm 20mm~230mm
    Square tube cutting diameter 20mm~140mm 20mm~140mm 20mm~140mm
    Upgrade 60r/min
    Equipment size Fully enclosed Air Conditioner, Smoke Purifier, Air Compressor,Voltage Regulator, Safety Light Curta


    Sample Display

    Sheet Metal

    Plate cutting effect

    Sheet Metal

    Plate cutting effect

    Sheet Metal

    Pipe cutting effect

    Sheet Metal

    Pipe cutting effect
