Precision Meets Performance: Hidgar Fiber Laser Cutting Machine
As a leading factory and manufacturer, we deliver top-tier exchange table fiber laser cutting machine, that enhance precision and productivity in metal fabrication.

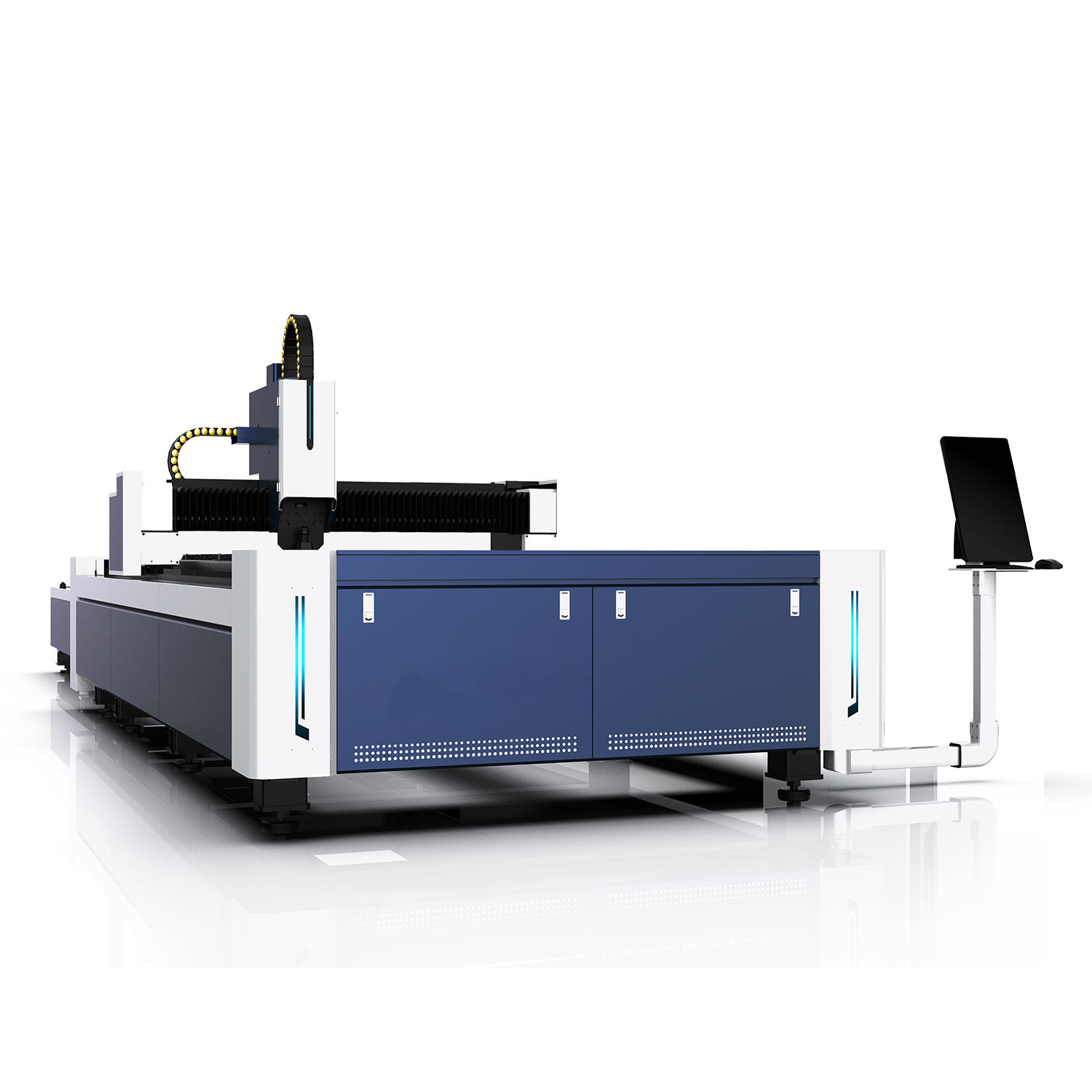

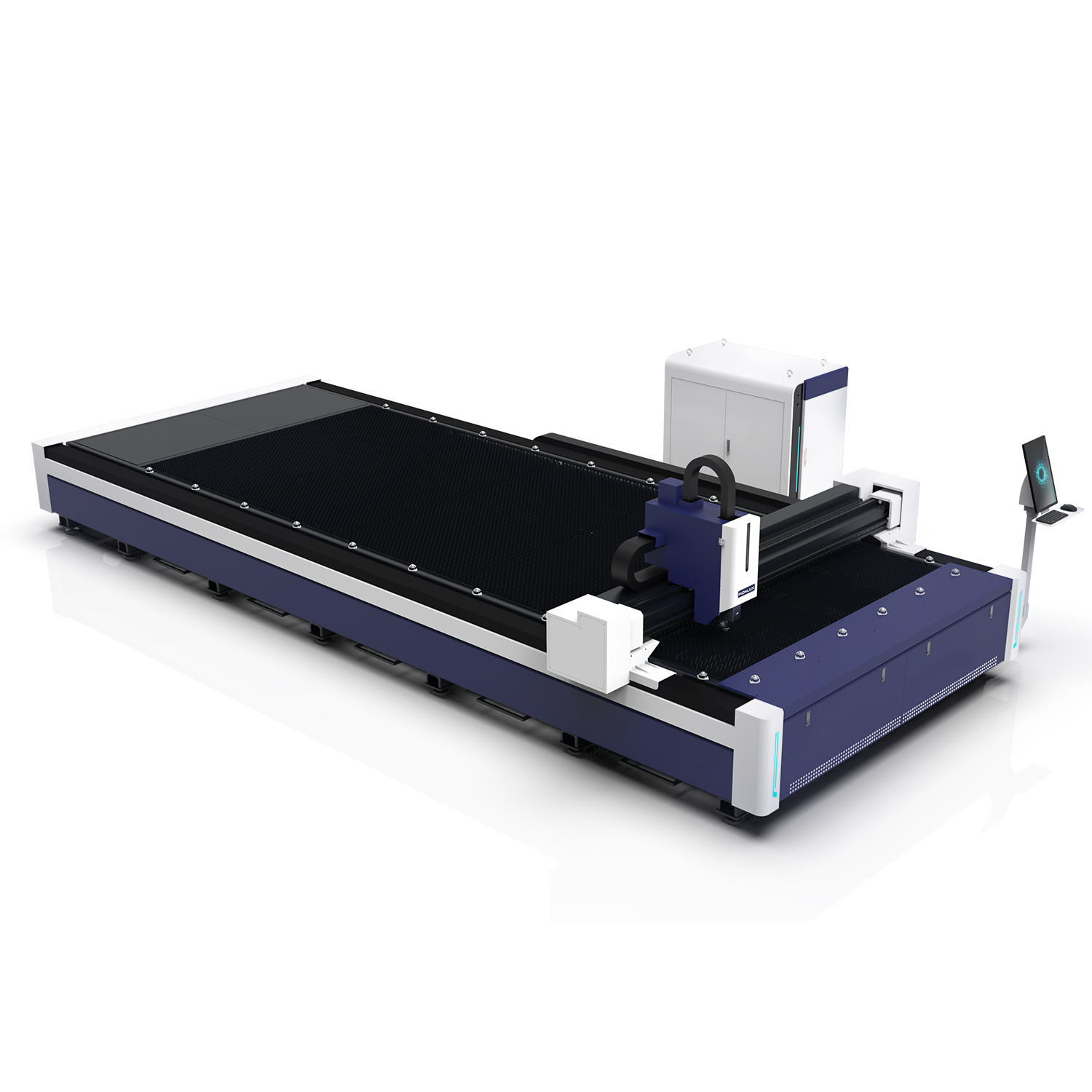

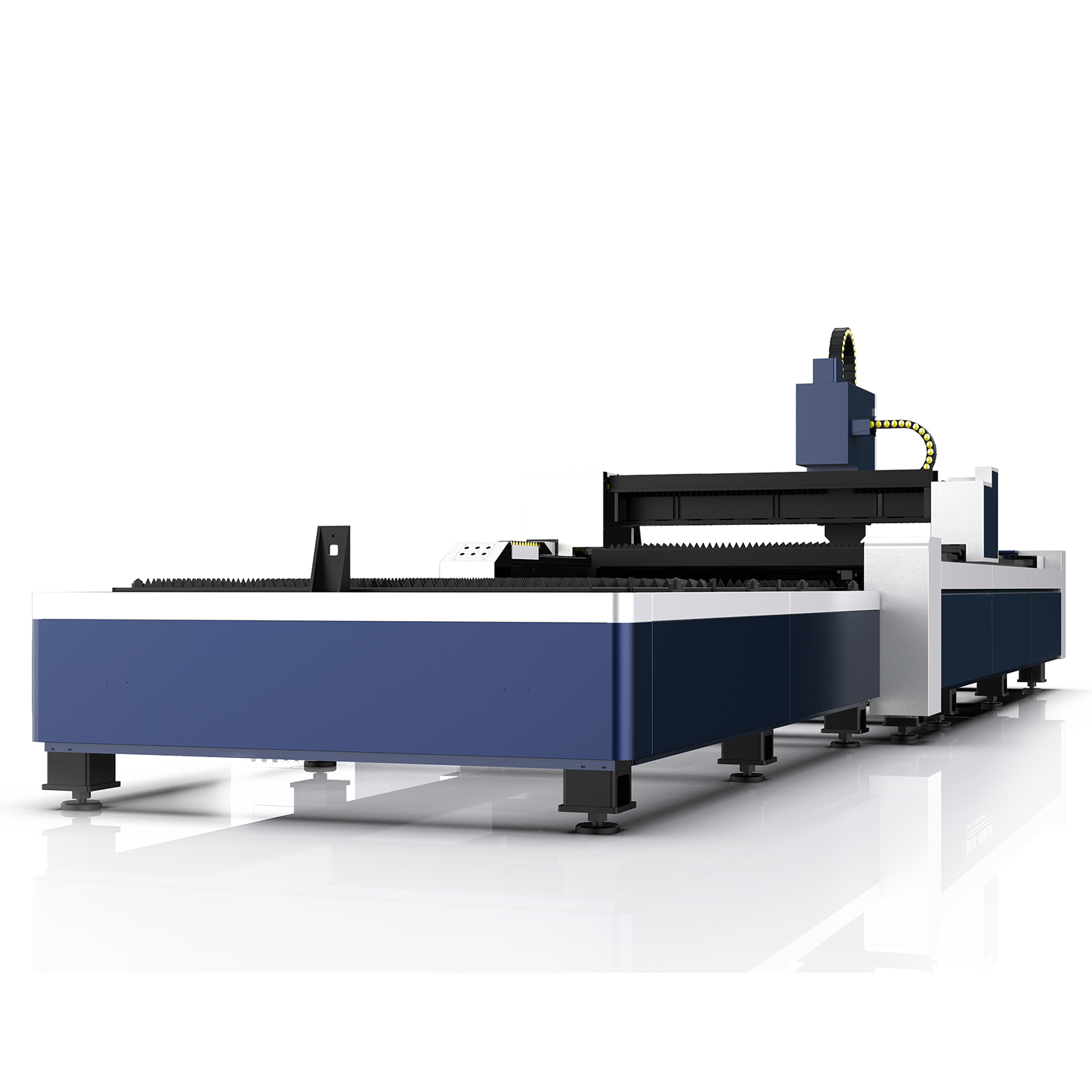

Exchange Table Fiber Laser Cutting Machine
Features: Boosts efficiency with its exchangeable worktable, minimizing idle time. The LF-EX enhances productivity by allowing loading and unloading during cutting, suitable for high-volume and precision tasks.
Laser power：2000w - 12000w
- Efficient Exchange Platform
- Cost-Effective High Value
- Broad Material Compatibility
Exchange Table Fiber Laser Cut Technical Specifications
| Mode | LF-3015B | LF-6015B | LF-4020B | LF-6025B |
|---|---|---|---|---|
| Working Area | 3000*1500mm | 6000*1500mm | 4000*2000mm | 6000*2500mm |
| X Y Z Axis Stroke | 1520*3100*100mm | 1520*6050*100mm | 2040*4050*100mm | 2510*6100*260mm |
| Laser Power Supply | 2000w, 3000w, 6000w, 12000w, 20000w | |||
| Maximum Acceleration | 2G | |||
| Positioning Accuracy | ±0.03mm | |||
| Voltage | 380V 3PH 50/60HZ | |||
| Cutting Ability | Carbon Steel: 1-80mm, Stainless Steel: 1-70mm, Aluminum: 1-60mm, Brass: 1-20mm | |||
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator | |||
Hidgar Machine Transmission and Precision
Cast Aluminum Beam
Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions. Precision is maintained.
Laser Cutting Head
The laser cutting head on our machine is state-of-the-art.
Hollow Steel Structure
Wireless handheld operation for ease and sensitivity. Perfectly compatible with the latest CNC system software and hardware.
Wireless
CNC system is cutting-edge. Its 32-inch touch screen improve user experience. Dynamic adjustments make it over 60% quicker than traditional systems.
Intelligent Operating System
The electrical cabinet is designed for optimal power management. It ensures that power distribution is efficient. The operation of the machine remains reliable and safe at all times.
Chiller Unit
A chiller unit is included to regulate the laser's temperature. Consistent performance is maintained. It also extends the lifespan of the machine. Dependability is enhanced.
Fiber Laser Cutting Machine: Key Parameters:
Master every metal challenge with Leapion's fiber laser cutting machine with exchange table. From stainless steel to titanium, achieve precise, clean cuts. Explore the versatility and power of our machines.
