Enclosed Fiber Laser Cutting Machine: Revolutionizing Metal Fabrication
Automated, precise, and versatile for various metals. Efficiency meets innovation.

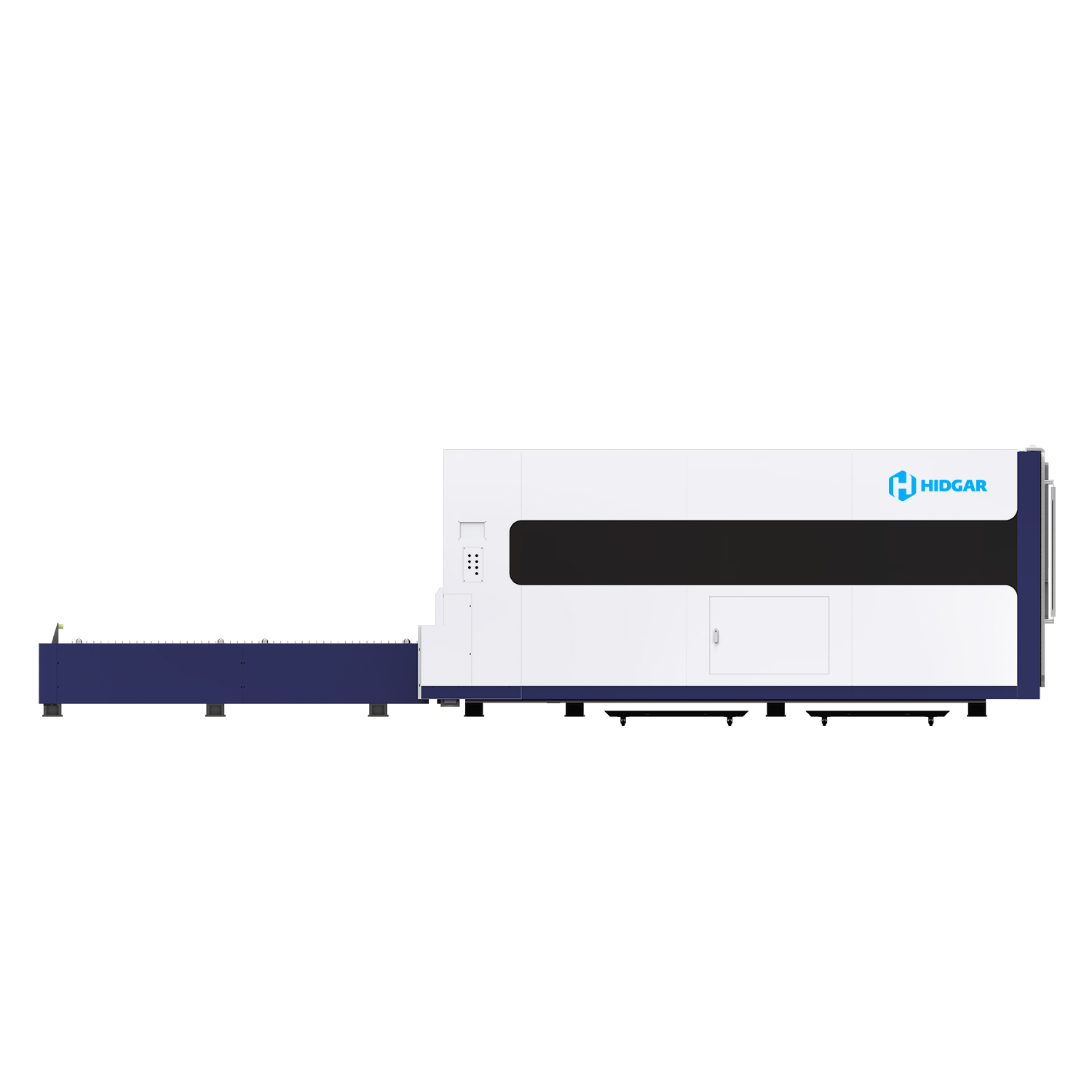

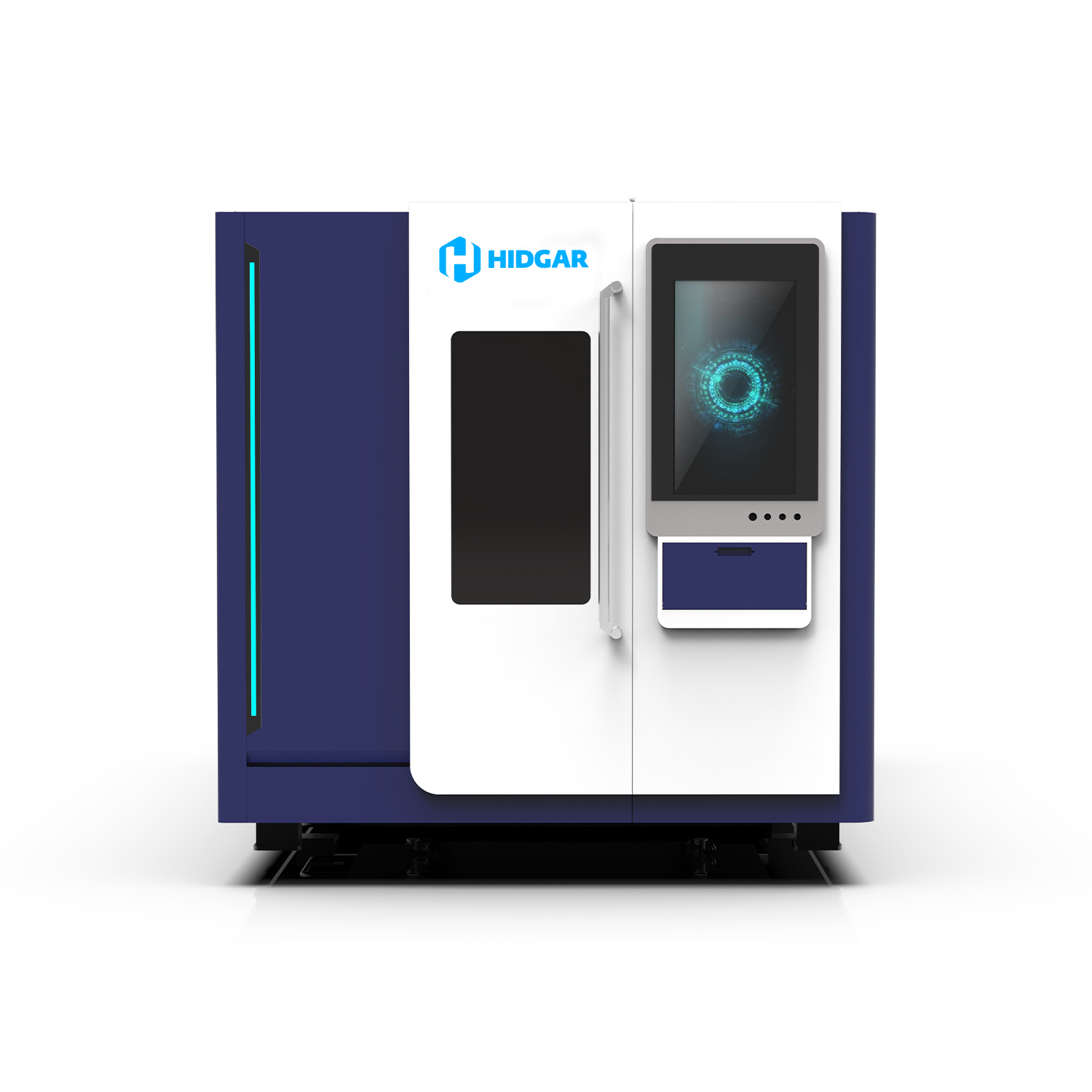

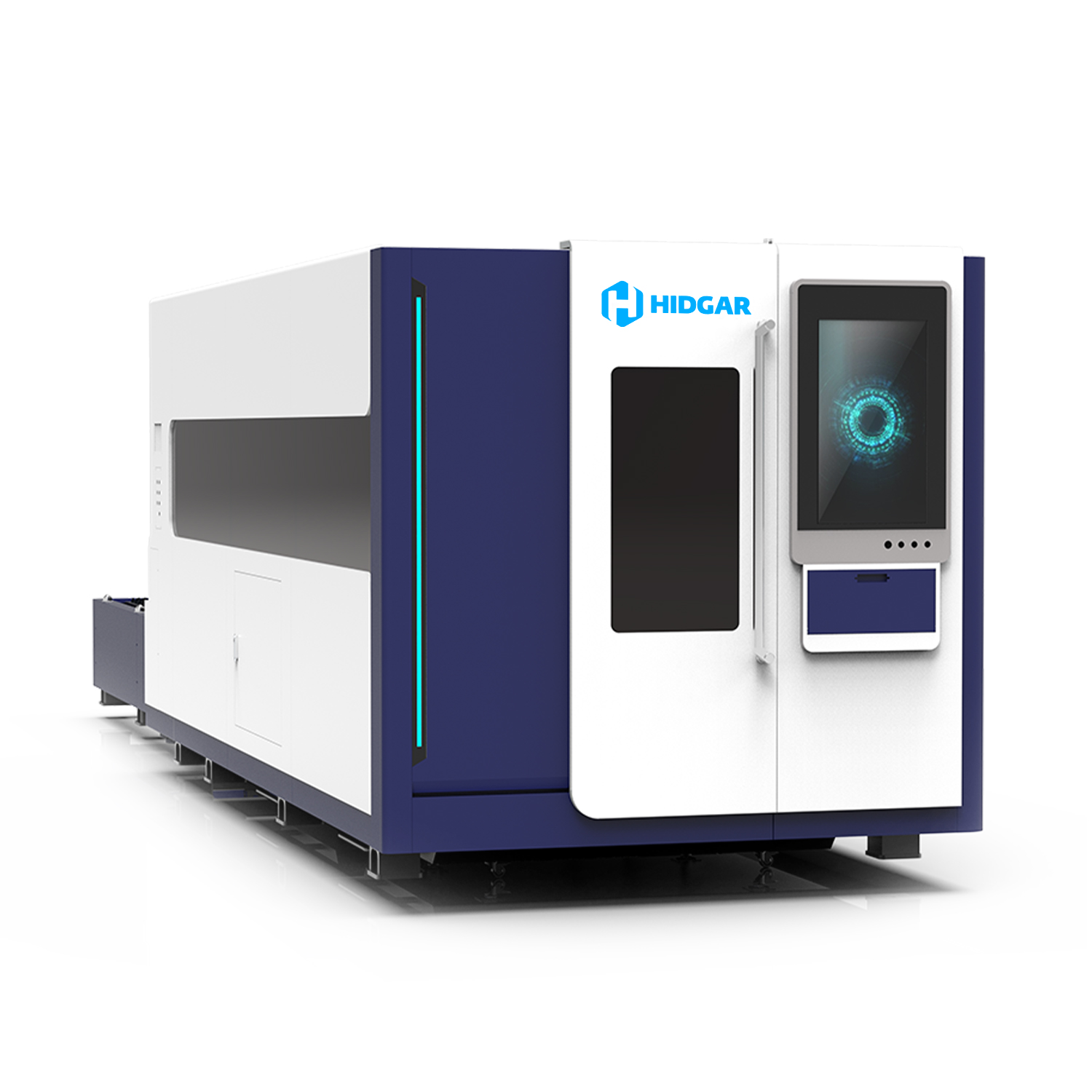

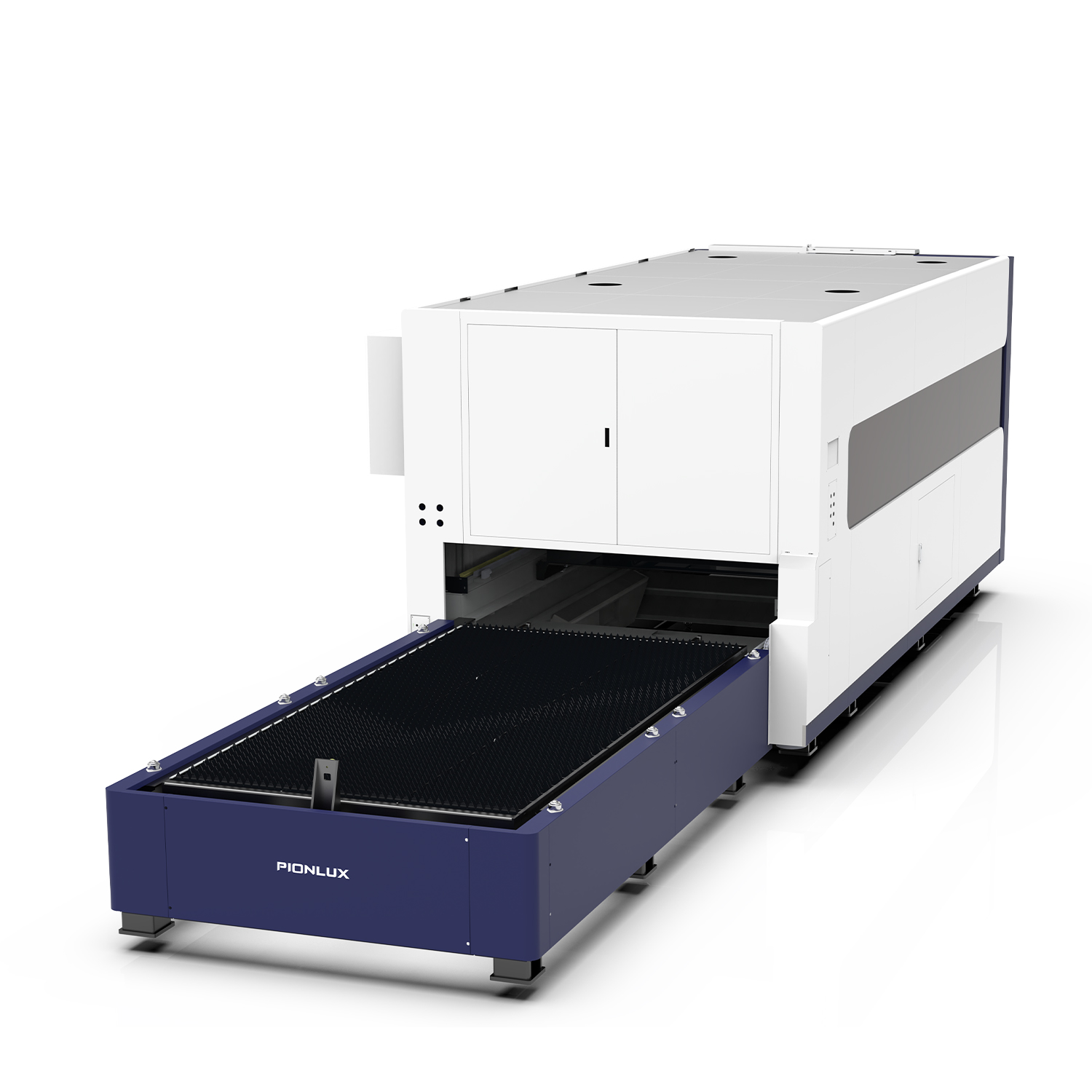

Enclosed Protective Fiber Laser Cutting Machine
Features: The HD series is engineered for smart, accurate tasks. It has an advanced CNC system for automatic operations. It's ideal for cutting a variety of metals, including carbon steel, stainless steel, copper plates, aluminum plates, and galvanized sheets.
Laser power：2000w - 50000w
- Intelligent CNC System
- Precision Engineering
- Camera Monitoring Front and Rear Bed
Enclosed Fiber Laser Cut Technical Specifications
| Mode | HD-3015B | HD-6015B | HD-4020B | HD-6025B |
|---|---|---|---|---|
| Working Area | 3000*1500mm | 6000*1500mm | 4000*2000mm | 6000*2500mm |
| X Y Z Axis Stroke | 1520*3100*150mm | 1520*6050*150mm | 2040*4050*150mm | 2510*6100*260mm |
| Laser Power Supply | 2000w, 3000w, 6000w, 12000w, 20000w | |||
| Maximum Acceleration | 1G | |||
| Positioning Accuracy | ±0.02mm | |||
| Voltage | 380V 3PH 50/60HZ | |||

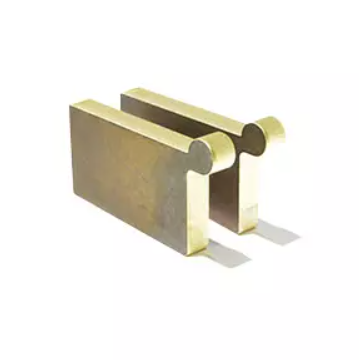

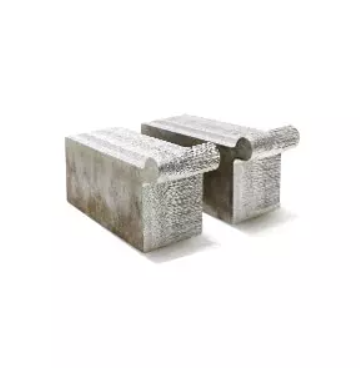

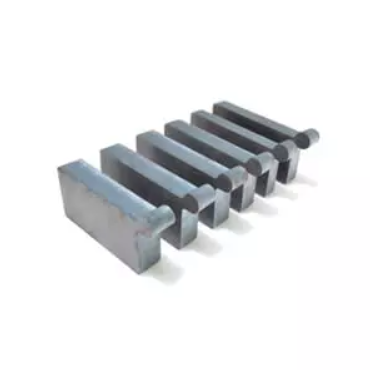

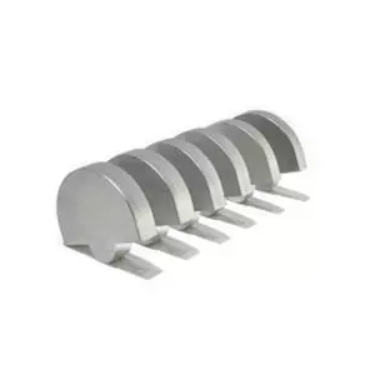

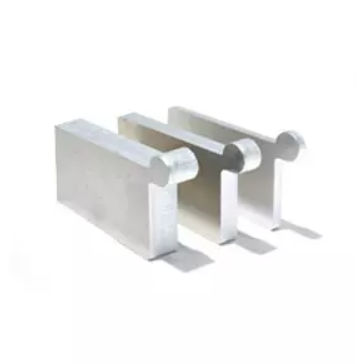

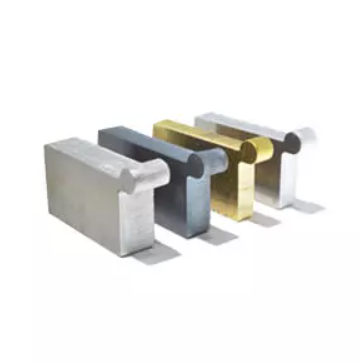

| Cutting Ability | Carbon Steel: 1-80mm, Stainless Steel: 1-70mm, Aluminum: 1-60mm, Brass: 1-20mm | |||
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator | |||
Core Technologies

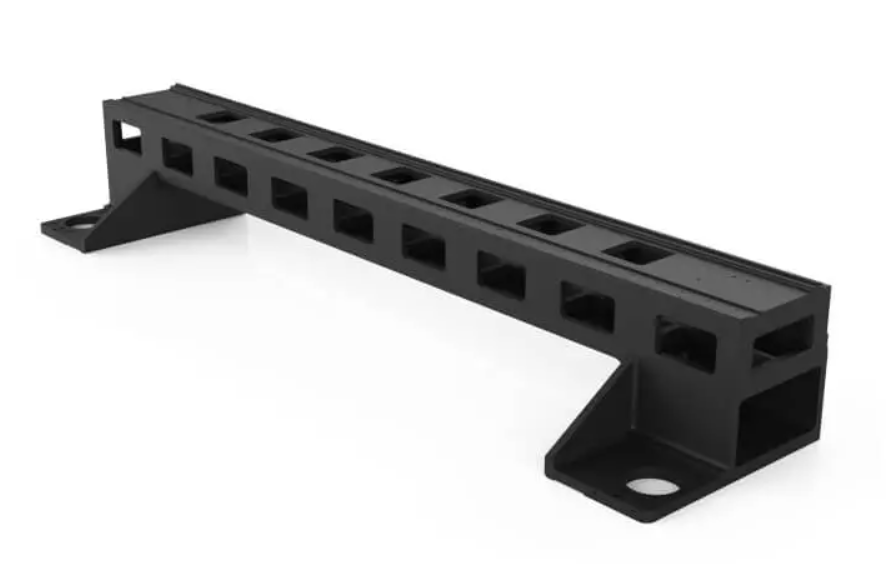

Aviation Grade Aluminium Beams
Our beam is made from Aviation grade high strength aluminium alloy beams. This material is chosen for its strength. It ensures swift and agile cutting motions. Precision is maintained.

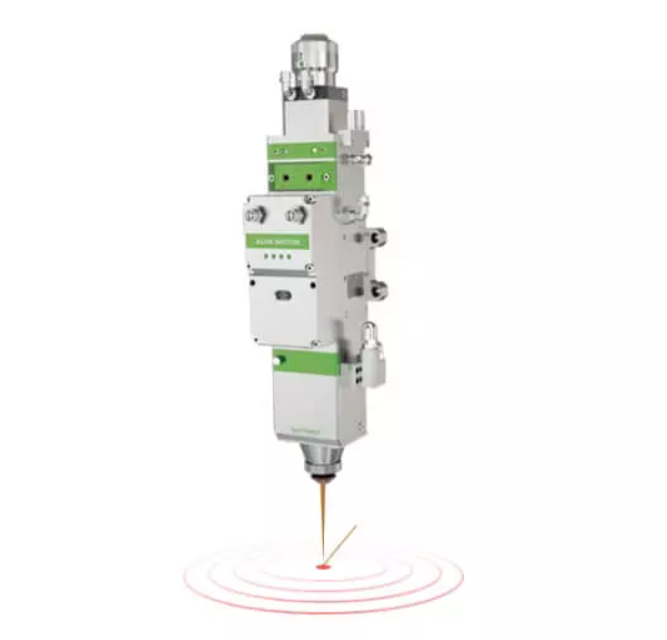

Laser Cutting Head
The laser cutting head on our machine is state-of-the-art. It consistently produces precise cuts. It's versatile across different materials. Optimal performance is a guarantee.

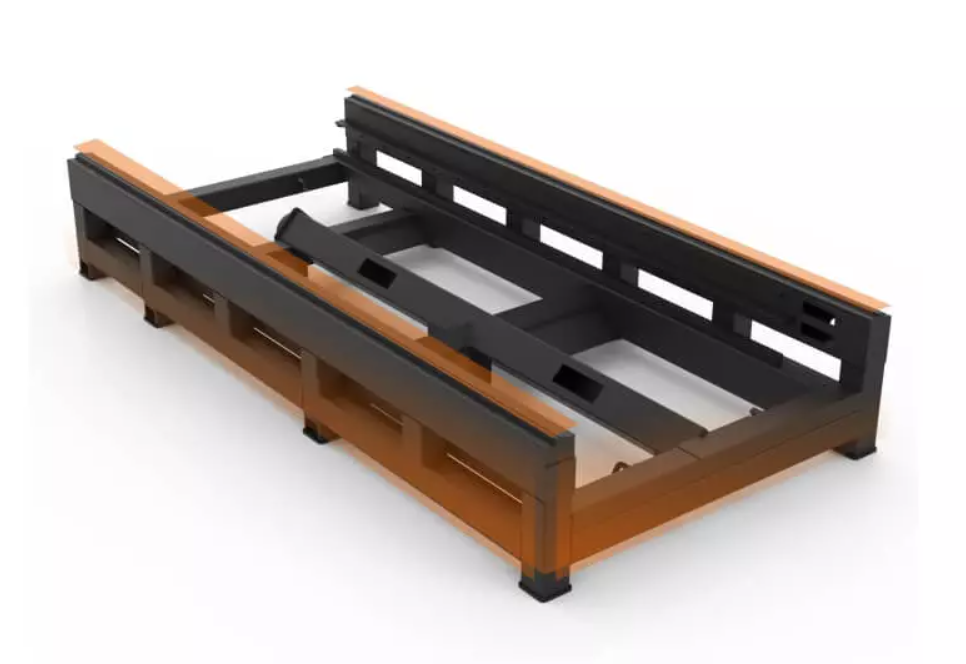

Hollow Steel Structure
Hidgar's laser bed’s smart design combines hollow steel and precise welding to keep stable even at high speeds. It has graphite anti-burn tech for lasting quality.

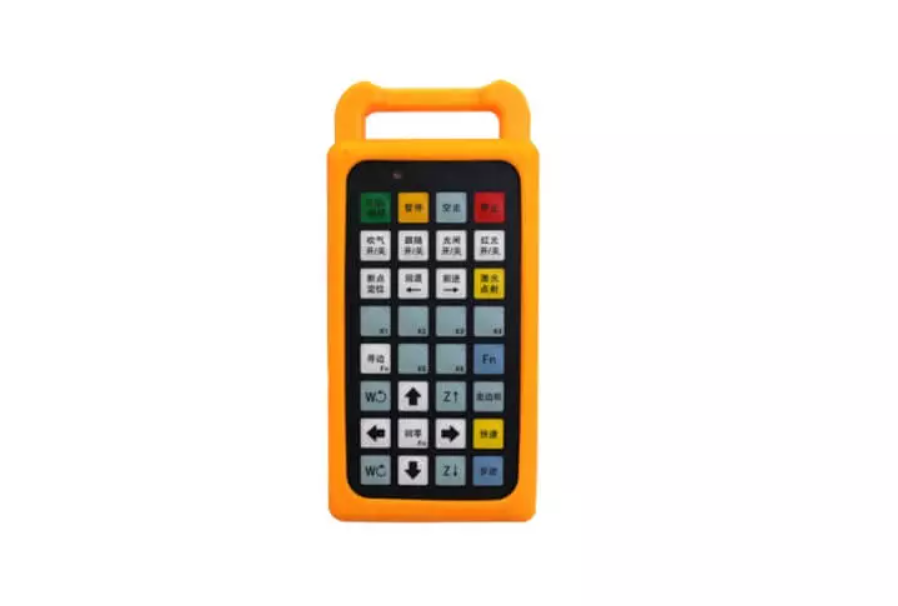

Wireless
Wireless handheld operation for ease and sensitivity. Perfectly compatible with the latest CNC system software and hardware.
Intelligent Operating System
CNC system is cutting-edge. Its 21-inch touch screen improve user experience. Dynamic adjustments make it over 60% quicker than traditional systems.

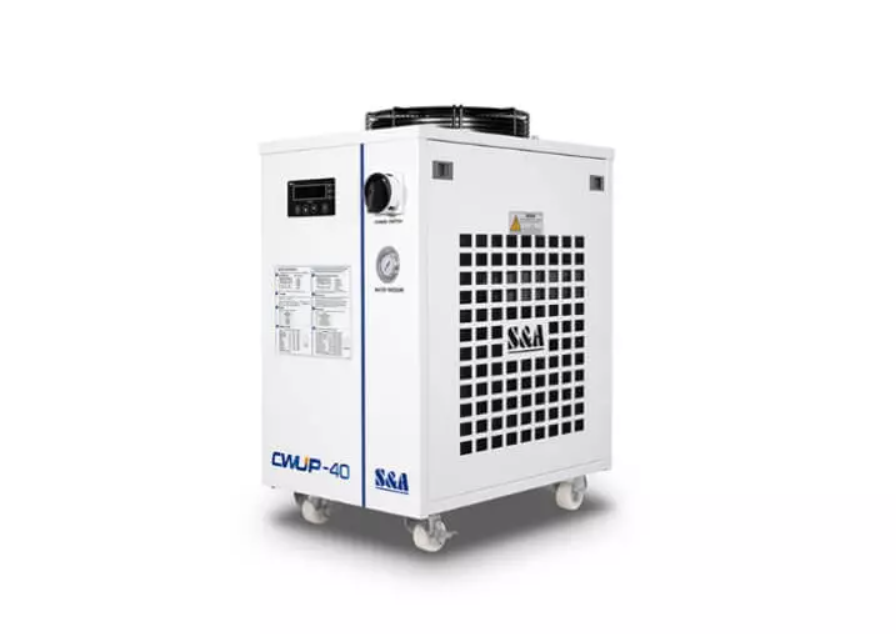

Chiller Unit
A chiller unit is included to regulate the laser's temperature. Consistent performance is maintained. It also extends the lifespan of the machine. Dependability is enhanced.
Fiber Laser Cutting Machine:
Master every metal challenge with Hidgar's high power enclosed fiber laser cutter. From stainless steel to titanium, achieve precise, clean cuts. Explore the versatility and power of our machines.
