Handheld Laser Welding Machine - Built for High-quality Welding
Our hand held laser welder have a cutting-edge design, delivers clean and uniform laser welding outcomes. It cuts maintenance costs and enhances work speed.

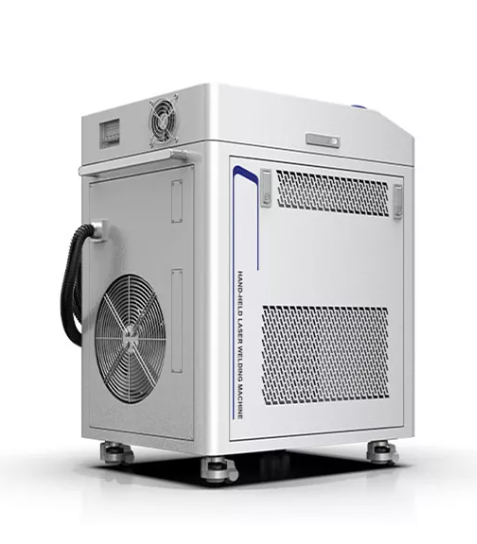

Handheld Laser Welding Machine
Features: offers welding, cutting, and cleaning with ease. It's ultra-light design and double lenses cut down on maintenance costs.
- Precision Cutting Made Affordable
- Ease of Use for Beginners
- Ideal for Small-Scale Metal Work
3 in 1 Handheld Laser Welding Parameters
| Model No. | DT-1000HJ | DT-1500HJ | DT-2000HJ | DT-3000HJ |
|---|---|---|---|---|
| Laser power supply | 1000W | 1500W | 2000W | 3000W |
| Laser welding ability | Carbon steel: 3mm Stainless steel: 3mm Aluminum: 1mm | Carbon steel: 4mm Stainless steel: 4mm Aluminum: 2mm | Carbon steel: 5mm Stainless steel: 5mm Aluminum: 3mm | Carbon steel: 8mm Stainless steel: 8mm Aluminum: 6mm |
| Operating mode | Continuous / Modulation | |||
| Power adjustment range | 10%-100% | |||
| Output central wavelength | 1070±20nm | |||
| Cooling method | Water cooling | |||
| Welding line requirements | ≤0.5mm | |||
| Welding speed | 0-120mm/s | |||
| Upgrade | Smoke Purifier | |||
Advanced Laser Technology
User-friendly and efficient, achieving faster and more precise results than TIG welding!

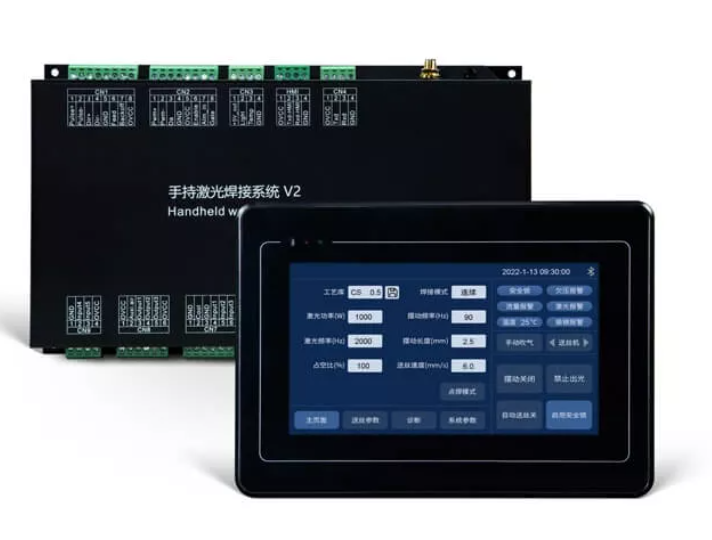

Adjustable Welding Parameters
Adjust welding parameters with ease, and switch between six welding modes at will!
Handheld Laser Welding Manner
Tee Weld
Fillet Weld
Spot Weld
Surfacing Weld
Groove Weld
Handheld Fiber Laser Welder Core Benefits

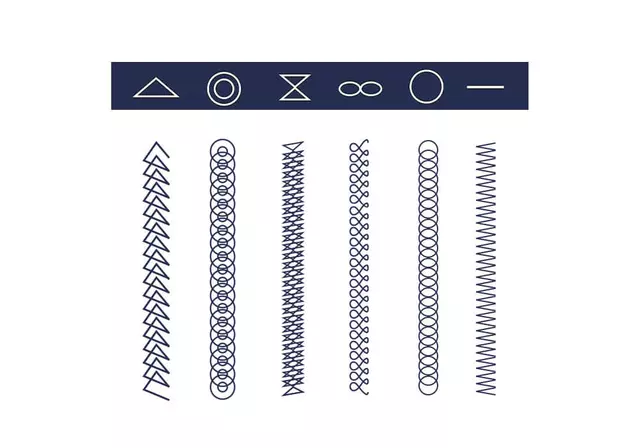

6 welding modes
From precise spot welding to continuous welding, choose the most suitable mode, ensure you get the best results .

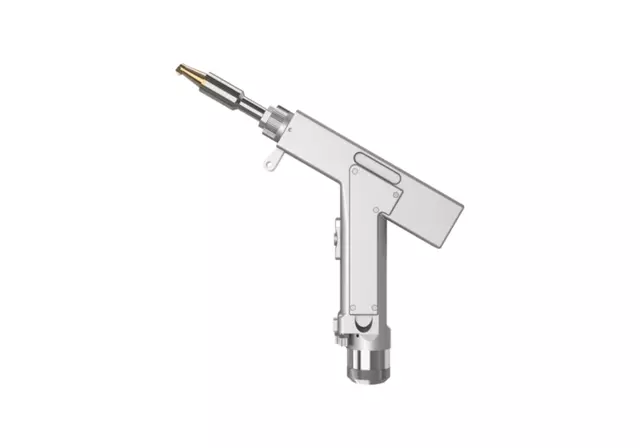

Humanized Design
Our welder gun's lightweight, ergonomic design weighs just 0.8kg. It's built for comfort during long hours of work.

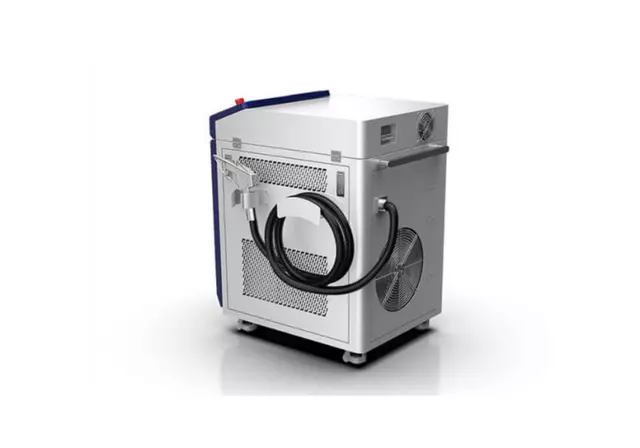

High Quality Materials
High-quality stainless steel is what we use to build the entire machine. It guarantees lasting stability.
Low Noise Operation
Is engineered to minimize noise, creating a more comfortable work environment for operators.

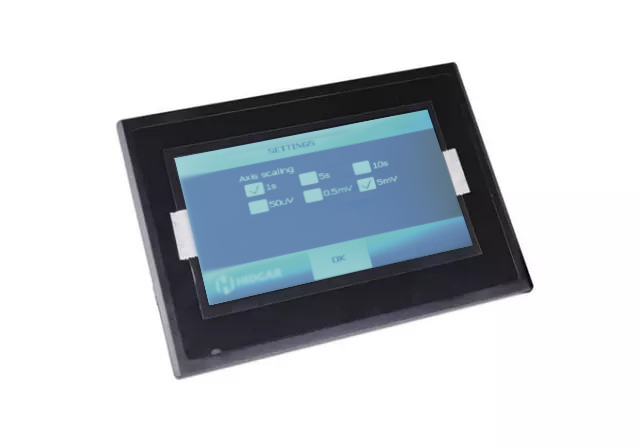

Intuitive User Interface
The operation screen has a user-friendly touchscreen. It enables quick startup for users at any skill level.
Handheld Laser Welding Manner
Laser rust
removal
Laser cutting aluminum
Laser welding aluminum
Laser cutting copper
Laser cleaning metal
Laser welding Stainless steel
Automotive manufacturing
Aerospace
Shipbuilding
Construction Industry
Metal Fabrication
